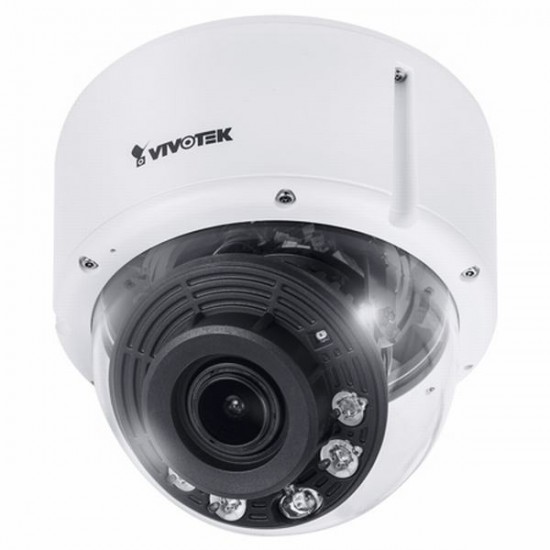

FD9365-HTV Vivotek 4-9mm Varifocal 60FPS @ 1080p Outdoor IR Day/Night Dome IP Security Camera 12VDC/24VAC/PoE

The FD9365 is the new flagship outdoor dome network camera from VIVOTEK, equipped with a full HD sensor capable of 1920x1080 resolution at 60 fps. With the most updated VIVOTEK SNV and WDR Pro technology, the FD9365 series is capable of capturing the highest quality images in both low light and high contrast environments.

Specifications

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128MB
• RAM - 512MB

Camera Features

• Image Sensor - 1/2" Progressive CMOS
• Max. Resolution - 1920x1080
• Lens Type - Vari-focal, Remote Focus
• Focal Length
  • f = 4 ~ 9 mm
  • f = 2.8 ~ 11.4 mm (equivalent focal length @1/2.8")
• Aperture - F1.3 ~ 2.2
• Auto-iris - P-iris
• Field of View
  • 46° ~ 120° (Horizontal)
  • 26° ~ 60° (Vertical)
  • 53° ~ 152° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR Pro II
• Day/Night - Removable IR-cut filter for day & night function
• Minimum Illumination
  • 0.04 Lux @ F1.3 (Color), 50IRE
  • 0.002 Lux @ F1.3 (Color), 30IRE
  • 0 Lux with IR LED on
• Pan Range - 353°
• Tilt Range - 65°
• Rotation Range - 180°
• Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
• IR Illuminators - Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*5
• On-board Storage - Slot type: Micro SD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 60 fps @ 1920X1080
• Maximum Streams - 4 simultaneous streams
• S/N Ratio - 66 dB
• Dynamic Range - 140 dB
• Video Streaming - Adjustable resolution, quality and constant bit rate control, Smart Stream III
• Image Settings - Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video Rotation, 3DNR, DIS, HLC

Audio

• Audio Capability - Two-way audio
• Compression - G.711, G.726
• Interface
  • Built-in Mic
  • External Mic input
  • External line output
• Effective Range - 5 meters

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS, NTCIP
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45)*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detection

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy
• Alarm Events
  • Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card
  • File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• Connectors
  • RJ-45 cable connector for Network/PoE connection
  • Audio line in
  • Audio line out
  • AC 24V
  • DC 12V
  • Digital input *2
  • Digital output *2
  • TV out
• LED Indicator - System power and status indicator
• Power Input
  • AC 24V
  • DC 12V
  • IEEE 802.3af PoE Class 0
• Power Consumption - Max. 11.9 W
• Dimensions - Ø 155 x 138 mm
• Weight - 1,300 g
• Casing - IP66, IK10
• Safety Certifications - CE, LVD, FCC Class A, VCCI, C-Tick, UL
• Operating Temperature
  • Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
• Humidity - 90%
• Warranty - 36 Months

System Requirements

• Operating System - Microsoft Windows 7/8
• Web Browser
  • Mozilla Firefox 7~43 (streaming only)
  • Internet Explorer 10/11
• Other Players
  • VLC: 1.1.11 or above
  • Quicktime: 7 or above

Included Accessories

• Others - Quick installation guide, warranty card, screw pack, alignment sticker
