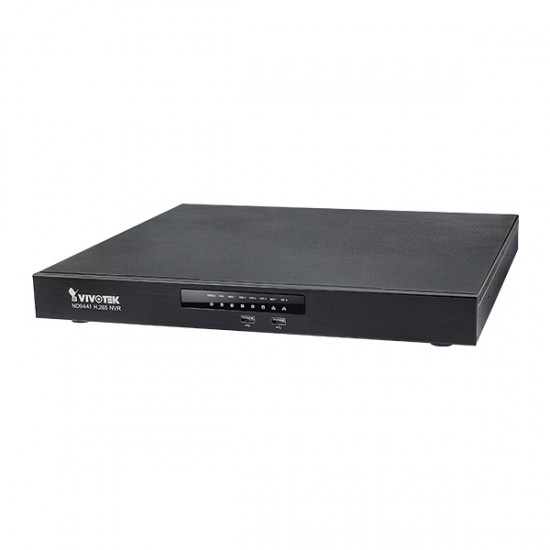

ND9441-4TB Vivotek 16 Channel NVR 192Mbps Max Throughput - 4TB

Features:

• H.265/H.264 Compression Technology
• Plug & Play One Button Auto Setup
• EZConnect by Scanning QR Code for 24/7 Mobile Viewing
• Intuitive, Elegant Interaction UI
• VIVOTEK Camera Configuration and VAST CMS Integrated
• Live and Playback Fisheye Dewarp
• Embedded Linux OS
• Story Board Event Search
• Up to 12MP Camera Liveview & Playback
• Dual Lan Network Ports with Failover Function
• ONVIF Open Platform (Project Support Function)
• 4 x 3.5" SATA HDD
• 4TB Storage

VIVOTEK’s ND9441 and ND9541 are the brand new H.265 Linux-based embedded standalone NVRs. Equipped for up to 16-CH/32-CH network cameras, the NVRs feature well-built ONVIF compliant and scalable configuration with VAST CMS empowering users to set up and manage advanced IP surveillance systems with ease. Both NVRs also support remote and mobile access, via VIVOCloud and iViewer app, for both iOS and Android handheld devices, providing users an open, flexible and intelligent NVRs for seamless use in small to medium sized video surveillance applications.

Specifications

Device

• Model - ND9441
• OS - Embedded Linux
• Watchdog - Hardware + Software
• Power Restoration - System restart automatically after Power Recovery

Local Display

• LiveView Display - 16 Channels Multi-Layout Display : 1x1, 2x2, 3x3, 1P+3,2P+3,1M+5, 1P+6, 3V,1M+12, 4x4
• Video Output - HDMI x1, VGA x1
• Display Resolution - 3840x2160, 1920x1080, 1280x720
• Camera Position - Change the viewcell position on the Live View screens
• Stream Application - Constant\Auto Adaptive Stream
• Monitor Enhancement - OSD display (NVR), OSD display (camera), camera inf ormation, remote I/O control, event notification, aspectratio
• Fisheye Dewarp - 1O, 1P, 1R, 1O3R, 1O8R
• PTZ Operation - Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control

Video

• Video Format - H.265, H.264, MJPEG
• Graphic Decoder - Hardware decoding
• Decoding Resolution - Up to 4096x4096 (H.265) 8192x8192 (H.264)
• Decoding Capability - H.265/H.264: 3840x2160 @ 120 f ps (4-CH), 1920x1080 @ 480 f ps (16-CH)

Audio

• Audio Format - G.711, G.726
• Audio In/Out - 3.5 Phone jack audio output x1, 3.5 Phone jack audio input (reserv ed) x1

Record

• Recording Time (sec.) - Pre-Record: 5 (Max. 10), Post-Record: 20 (Max. 300)
• Recording Stream - Single
• Recording Throughput - 192 Mbps
• Recording Mode - Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
• Recording Setting - Recycle (unit: Day )
• Watermark - Supported

Storage & Backup

• HDD Devices - Internal x 4 (3.5" HDD)
• HDD Max. Capacity - 12TB
• RAID - RAID 0, 1, 5 (single volume up to 16TB)
• Disk Management - Create, Format and Remove Disk HDD S.M.A.R.T.
• External Storage - USB Storage (USB 3.0)
• Video Clip Export - USB Dongle (FAT Format)
• Schedule Backup - FTP

Playback

• Play back Display - 4 Channels Multi-Layout display : 1x1, 2x2, 1P+3, 1V+3
• Play back Control - Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (story board)
• Video Search - By calendar, date/time, and alarm
• Thumbnail Explorer (Story board) - Listing the thumbnail of recorded video (Max. 2-CH)
• Snapshot - JPEG
• Video Clip Export - EXE

Network

• Ethernet - 10/100/1000Mbps Ethernet (RJ-45) x2
• Video Throughput f or Remote Client - 96 Mbps
• Protocols - IPv 4, IPv 6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter

External Interface

• USB - Front: 2 (USB 2.0), Back: 1 (USB 3.0)
• Alarm In - 8
• Alarm Out - 4
• Audio - 3.5 Phone Jack Audio Output x1, 3.5 Phone Jack Audio Input (Reserved) x1
• RS485 - 1 Port (Reserved)

System

• POS Integration - Supported (by project request)
• UPS Integration - Supported (by project request)
• Camera Integration - ONVIF Profile S
• Event - Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, Network disconnected
• Event Action - Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO,VIVOCloud APP Notification
• User Management - User level: administrator, regular user
• Log - System, recording, user, error
• Date & Time - Time Zone, Manual, Automatic Sync NTP, Day light Saving Time
• Language - Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplif ied Chinese, Traditional Chinese

Advanced Features

• VCA Counting Solution - Supported
• VCA Event Search - Supported
• Smart Search II - Supported
• Trend Micro IoT Security - Supported
• Cybersecurity Management - Supported

Remote Client

• Software AP - Shepherd, VAST 2
• Mobile/Tablet App - iViewer (Android & iOS)
• Web Browser - Internet Explorer 10 (32 bit) or above/ Windows Chrome v 68.0.3 & Firef ox v 61.02 or above/ Windows & macOS (The new web interface is only supported by Chrome)
• VIVOCloud - Supported

General

• Power Input - DC 56V 1.34A
• Power Consumption - Max. 120 W
• Dimensions - 430 (W) x 400 (D) x 44.5 (H) mm
• Weight - 3.87 kg (without HDD)
• Operating Temperature - 0°C ~ 40°C (32°F ~ 104°F)
• Humidity - 0 ~ 95%
• Safety Certifications - CE, LVD, FCC, VCCI, C-Tick, UL
• Warranty - 36 months

ND9441-4TB Datasheet
