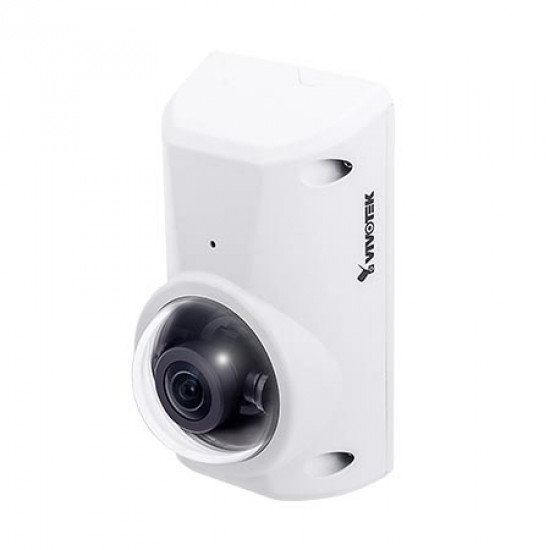

CC9380-HV Vivotek 1.45mm 20FPS @ 5MP Outdoor Day/Night WDR Panoramic IP Security Camera PoE

VIVOTEK’s CC9380-HV is an update on the widely popular CC8370-HV, now available in 5MP with H.265 compression.
The CC9380-HV is a true day/night camera, with a removable IR-cut filter. Through the use of a single fisheye lens set to a 180° panoramic view, the seemless image provides a very large vertical field of view. This allows for amazing close range surveillance coverage in a low profile design.
To meet the demands of any harsh outdoor application, the CC9380-HV is also armed with IP66-rated housing to help the camera body withstand rain, dust and high pressure water jets from any direction, while its IK10-rated housing provides robust protection against acts of vandalism. In addition the CC9380-HV continues the trend of its predecessor CC8370-HV and has an anti-ligature housing, to reduce chances of suicide and/or self inflicted harm.

Specifications

Model - CC9380-HV

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 256MB
• RAM - 512MB

Camera Features

• Image Sensor - 1/2.7"" Progressive CMOS
• Max. Resolution - 2560 x 1920 (5MP)
• Lens Type - Fixed-focal
• Focal Length - 1.45 mm
• Aperture - F2.2
• Iris type - Fixed-Iris
• Field of View - 180° (Horizontal), 120° (Vertical), 180° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec
• WDR Technology - WDR Pro
• Day/Night - Yes
• Removable IR-cut filter - Yes
• Minimum Illuminators - 0.11 Lux @ F2.2 (Color), 0.01 Lux @ F2.2 (B/W)
• Tilt Range - ±25°
• Pan/Tilt/Zoom Functionalities - ePTZ : 48x digital zoom (4x on IE plug-in, 12x built-in)
• Storage - Seamless Recording to MicroSD/SDHC/SDKC card and recording to network-attached storage (NAS)

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - H.265: 20 fps/30 f ps @ 2560x1920 (WDR Pro on/off ), H.264: 20 fps/25 f ps @ 2560x1920 (WDR Pro on/off ) MJPEG: 20 fps/20 f ps @ 2560x1920 (WDR Pro on/off )
• Maximum Streams - 3 video streams, (Up to 8 configurable profiles)
• S/N Ratio - 62 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and bitrate, Smart Stream III
• Image Settings - General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Privacy mask: Scheduled profile settings

Audio

• Audio Capability - One-way Audio
• Compression - G.711, G.726
• Interface - Built-in microphone
• Effective Range - 5 meters

Network

• Users - Live viewing for up to 10 clients
• Security - Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
• Protocols - 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
• Interface - 10Base-T/100 BaseTX Ethernet (RJ-45) *It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
• ONVIF - Profile G, S, T supported, specification available at www.onvif.org

Solution Integration

• Video Motion Detection - Five window video motion detection
• VADP Package - Trend Micro IoT Security (1-y ear f ree trial), VIVOCloud

Alarm and Event

• Event Triggers - Audio detection, Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
• Event Action - Event notification via email, HTTP, FTP, NAS server, SD card, push notification File upload via email, HTTP, FTP, NAS server, SD card

General

• Connectors - RJ-45 cable connector f or 10/100Mpbs Network/PoE connection
• LED Indicator - System power and status indicator
• Power Input - IEEE 802.3af PoE Class 1
• Power Consumption - Max. 5 W
• Dimensions - 115 x 65 x 59 mm
• Weight - 338 g
• Safety Certifications - EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), VCCI (VCCI-CISPR 32 Class B); Safety : UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950- 22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252)
• Operating Temperature - Starting Temperature: -10°C ~ 50°C (-14°F ~ 122°F), Working Temperature : -30°C ~ 50°C (-22°F ~ 122°F)
• Humidity - 90%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 10/8/7 Mac 10.12 (Chrome only )
• Web Browser - Chrome 58.0 or above Internet Explorer 10/11
• Other Players - VLC : 1.1.11 or above, QuickTime : 7 or above

Included Accessories

• Others - Quick installation guide, warranty card, mounting bracket, screw pack
