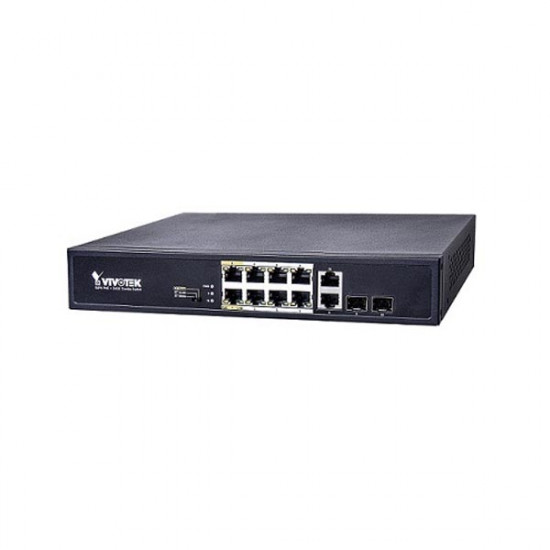

AW-FGT-100D-120 Vivotek Unmanaged 8xFE PoE + 2xGE Combo Switch
- Brand: Vivotek
- Model: AW-FGT-100D-120
- SKU: AW-FGT-100D-120
- MPN: AW-FGT-100D-120
$162.00
The AW-FGT-100D-120 quipped with DIP switch provides EX mode, ST VLAN, and ST mode. Especially designed for IP Surveillance applications, the camera provides standard 802.3af/at PoE functions in ST mode, while EX mode transmits data & power on one single cable up to 250 meters via EX ports for long-reach PoE IP cameras.
Specifications
- Model - AW-FGT-100D-120
- Short Highlight - 8xFE PoE + 2xGE Combo
Networking Specfications
- 10/100 Mbps RJ45 PoE Port - 8
- Gigabit RJ45/SFP Combo Ports - 2
- EX Mode PoE Ports (250M@10Mbps) - 2
Ethernet Performance
- Switching Bandwidth - 5.6 Gbps
- Mac Table - 4 K
- Jumbo Frame - 1,536 Bytes
- Auto-MDI/MDI-X, Auto-Negotiation - Supported
Power Specifications
- Power Input Voltage - 100V ~ 240VAC
- Max. PoE Output Power - Per Port 54VDC, Max. 30W
- Total PoE Power Budget - 115W
- Power Consumption - 120W
- IEEE 802.3af/at - Supported
- Power Pin Assignment - 1/2(+), 3/6(-)
- PoE PD Auto Detection - Supported
- Surge Protection/Each PoE Port - 6KV
- Surge Protection for AC Power - 4KV
General
- Operating Temperature - 0°C ~ 50°C (32°F ~ 122°F)
- Storage Temperature - -20°C ~ 70°C (-4°F ~ 158°F)
- Operating Humidity - 10% ~ 90% non-condensing
- Dimensions - 270 (L) x 181 (W) x 44 (H) mm
- Weight - 1.54 kg
- Warranty - 24 months
Certifications
- EMC - CE, FCC, VCCI
- Safety - LVD EN62368-1
