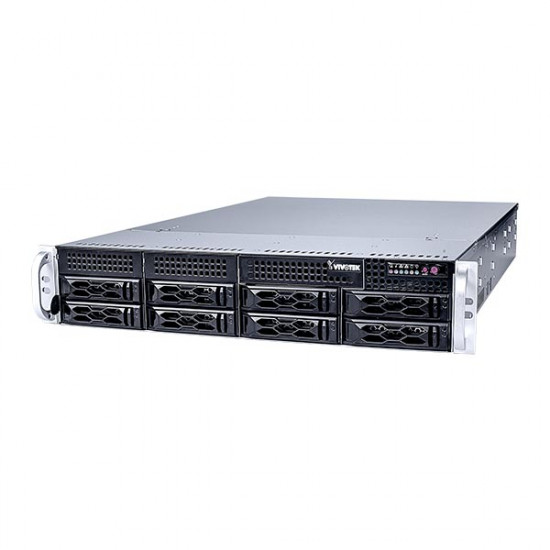

NR9581-V2 Vivotek 32 Channel NVR 512Mbps Max Throughput - No HDD

Features:

• H.265/H.264 Compression Technology
• 32-CH Recording, 32-CH Display
• 8 Hot-Swappable HDD Bays
• Support RAID 0/1/5/6/10 Storage
• Redundant Power
• Dual Lan Giga Network Ports
• Multiple Fisheye Dewarp Support
• VIVOTEK VAST 2 Inside
• Smart Search II: People/Vehicle Search
• Analytics Integration: Smart VCA, Parking Violation/Restricted Zone Detection
• Cybersecurity Management Solution
• Comprehensive VIVOTEK Solution Support

VIVOTEK’s NR9581 is a full-featured high-performance H.265 NVR. Equipped with a 2U 32-CH 8 Bay Rackmount network appliance, standard RAID capability and H.265 video codec, the total storage capacity of the NVR also endows the NR9581 with scalability and flexibility, making it perfect for large-scale transport or industrial applications as well as public spaces such as campuses.

Specifications

Hardware Information

• Model - NR9581-V2

System

• OS - Embedded Windows 10
• Watchdog - Hardware + Software
• Power Restoration - System Restart Automatically after Power Recovery

Display

• LiveView Display - 32 Channels Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8 Panorama: 1P+6, 2P, 2P+3, 3P, Focus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8, Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5V Single lay out display, full screen display, custom lay out, lay out rotation
• Video Output - HDMI x 1, Display Port x 1
• Display Resolution - HDMI: 4096x2160, DP: 4096x2304
• Dual Monitor - Supported
• Camera Position - Change the viewcell position on the Live View screens
• Stream Application - Stream Selection & Auto Stream Size
• Monitor Enhancement - E-Map Embedded, Drag & Drop, Remote I/O Control, PiP (Digital Zoom), Instant Play back, Video Display Mode (Aspect Ratio & Camera Inf ormation), Metadata Display (VCA, POS and Data Magnet)
• Fisheye Dewarp - 1O, 1P, 1R, 1O3R, 4R, 2P, 4R Pro, 1O8R and Fishey e Auto-Pan
• PTZ/ePTZ Operation - Direction Control, Home, Zoom, Focus, Isis, Preset, Patrol (Group), Tracking, Pan, Stop, Speed, Wiper Blade Control

Video

• Video Format - MJPEG, MPEG4, H.264 AVC, H.264 SVC, H.265
• Graphic Decoder - Software decoding
• Decoding Resolution - Up to 8192x8192
• Decoding Capability - H.264: 540fps @ 1920x1080, H.265: 270fps @ 1920x1080

Audio

• Audio Format - G.711, G.726, AMR, AAC
• Audio In/Out - Microphone audio jack Input x 1, 3.5 Line input audio jack x 1, 3.5 Line output audio jack x 1
• 2-way Audio - Supported

Record

• Recording Time (sec.) - Pre-Record: 3-15, Post-Record: 10-60
• Recording Stream - Single
• Recording Throughput - 512 Mbps
• Recording Mode - Continuous, Event, Customized Schedule, Activity Adaptive Streaming
• Recording Setting - Recycling time depends on the remaining storage space or the set number of days
• Watermark - Supported
• Seamless Recording - Supported

Storage & Backup

• HDD Devices - Hot-Swappable Tray x 8 *HDD is purchased by separately
• RAID - RAID 0, 1, 5, 6, 10
• Disk Management - Create, format and remove disk
• Video Clip Export - USB Dongle (FAT Format) NAS (SMB & CIFS)
• Schedule Backup - NAS (SMB & CIFS)

Playback

• Playback Display - 32 Channels (the max. number of monitors supported depends on the decoding capability of your system) Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8 Panorama: 1P+6, 2P, 2P+3, 3P Focus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8 Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5V Single lay out display, full screen display, custom lay out, lay out rotation
• Play back Control - Play, rewind, pause, stop, next/previous video start, next/previous frame, 1/8X ~ 64X speed control, bookmark
• Video Search - Calendar, Ev ent, Alarm, Bookmark, Thumbnail, Smart Search II, Transaction (POS), Data Magnet, Log
• Snapshot - BMP & JPEG
• Video Clip Export - 3GP & EXE

Network

Ethernet - 10/100/1000Mbps Ethernet (RJ-45) x 2
• Video Throughput for Remote Client - 400 Mbps
• Protocols - IPv 4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter

Alarm Management

• Alarm Period (sec.) - Max. 30
• Alarm Filter - Time, Trigger Type (Camera/Substation/System), Status, Name, Trigger Source
• Alarm Setting - Realtime System Notification, Alarm Result Display by List or Thumbnail
• Schedule Type - Continuous, schedule, manual
• Camera Event - General: Motion detection, Camera DI, Camera DO, IR (Infrared), PIR (Passive infrared), Tampering detection, Temperature, Camera disconnected, Recording error, Stop recording, Video loss (Video server only ), SD card life expectancy detection, Audio detection, Shock detection Smart VCA: Line crossing detection, Intrusion detection, Loitering detection, Face detection, Missing object detection, Unattended object detection, Crowd detection, Running Detection Trend Micro IoT Security : Brute force attack, Cyberattack, Quarantine event
• Substation - NV Series NVR: Abnormal G-sensor Motion, Speeding, GPS Disconnected ND Series NVR: Fan Status, Network Disconnected, Storage Failure, Storage Full, Number of remaining people, Brute force attack, Cyberattack, Quarantine event NR Series NVR: Network Disconnected, Storage Failure, Storage Full
• External Devices Event - DI/O (with I/O Box), TCP Message
• Action - Start to record videos, Set DO status, Go to camera presets, Send HTTP requests, Send liv e streaming, Send email with snapshot of assigned camera(s), Go to E-Map, Sound the alarm and Add bookmark
• Alarm State for Management - New, In Progress, False Alarm and Close
• Alarm Result Export - .csv File

eMap

• Source - Import picture & folder
• Device - Camera, external DI/O
• Marked - Add, remove, direction control, PTZ control, FOV control, live view & play back
• Event Notification - One or More Live Streaming

External Interface

• USB - USB 3.0 Ty pe- A x3 USB 3.0 Ty pe-C X1
• Audio - Microphone audio jack Input x 1, 3.5 Line input audio jack x 1, 3.5 Line output audio jack x 1

System

• POS Integration - Supported
• UPS Integration - Supported
• Camera Integration - ONVIF Profile S
• I/O Box Integration - Advantech ADAM-6000 Series, CHIYU CYT-133SC, MOXA ioLogik E1210, E1211 and E1212
• User Management - Authentication: Basic Account / Windows AD Account User Account: 1024 User Lev el: Administrator / Customized User
• Log - Operation, system and event log
• Date & Time - Sync server

Advanced Features

• VCA Counting Solution - Supported
• LPR Solution - Supported
• VCA Event Search - Smart VCA
• Smart Search - Smart Search I & Smart Search II
• Cybersecurity Management - Supported
• Failover - Supported

Remote Client

• Software AP - Shepherd, VAST 2
• Mobile/Tablet App - iViewer (iOS/Android)
• Web Browser - Internet Explorer 9 (32 bit) or above

General

• Power Input - Redundant power 100~220V AC
• Power Consumption - Max. 650 W
• Redundant Power - Supported
• 80 Plus Certified - Platinum
• Dimensions - 89 (H) x 437 (W) x 647 (D) mm
• Weight - 15.8 kg (without HDD)
• Operating Temperature - 5°C ~ 35°C (41°F ~ 95°F)
• Humidity - 0 ~ 95%
• Safety Certifications - CE, FCC, VCCI, C-Tick, UL, CB
• Warranty - 36 months

NR9581-V2 Datasheet
