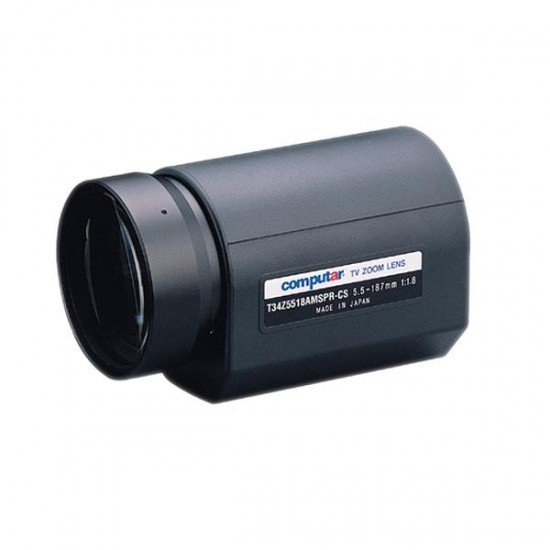

T34Z5518AMSPR Computar 1/3" CS-Mount Motorized Zoom 5.5-187mm F/1.8 Auto Iris and Over-ride Manual and Preset Lens

Features:

• 1/3" 5.5-187mm f1.8 34X Motorized Zoom
• Video Auto Iris w/spot, preset, & man. override (CS Mount)

Specifications

• Focal Length - 5.5mm - 187mm
• Max. Aperture Ratio - 1:1.8
• Max. Image Format - 4.8mm x 3.6mm(6mm)
• Operation Range
  • Iris - F1.8 - F560C
  • Focus - 1.5m - Inf.
  • Zoom - 5.5mm - 187mm
• Control
  • Iris - Video Auto Iris / Over-ride Manual
  • Focus - Motorized, Preset
  • Zoom - Motorized, Preset
• Object Dimension at M.O.D.
  • 5.5mm - 129.2cm x 95.2cm
  • 187mm - 4.1cm x 3.1cm
• Angle of View
  • 1/3"
    • D - 57.5° - 1.92°
    • H - 46.6° - 1.55°
    • V - 35.2° - 1.17°
  • 1/4"
    • D - 43.8° - 1.45°
    • H - 35.2° - 1.17°
    • V - 26.5° - 0.88°
  • Supply Voltage
    • Iris - DC8.5V -DC16V
    • Focus - DC8V
    • Zoom - DC8V
  • Current
    • Iris - 50mA or less
    • Focus - 40mA or less
    • Zoom - 25mA or less
  • Response Time
    • Iris - Approx. 2 sec
    • Focus - Approx. 3.5 sec
    • Zoom - Approx. 3.5 sec
  • Preset Potentiometer
    • Focus - 5KVR
    • Zoom - 5KVR
• Light Weighting Method - Adjustable between Average - Peak (to be Set at Average at Factory)
• Remote Control - Level Remote (Optison) / Over-ride Manual
• Input Signal - Video Signal (V. or V.S.)
• Iris Accurancy - ±15% at Video Signal Level
• Sensitivity Adjustment - 0.5V(p-p) - 1.0V(p-p) (Video Signal)
• Input Impedance - High Impedance
• Operating Temperature - -10°C - +50°C
• Effective Lens Aperture
  • Front - 70.0mm
  • Rear - 9.1mm
• Back Focal Length - 12.7mm
• Flange Back Length - 12.5mm
• Mount - CS-Mount
• Filter Size - M77 P=0.75mm
• Tripod Screw - 1/4 - 20UNC
• Dimensions - W82mm x H97.4mm x D160mm
• Weight - 1180g
