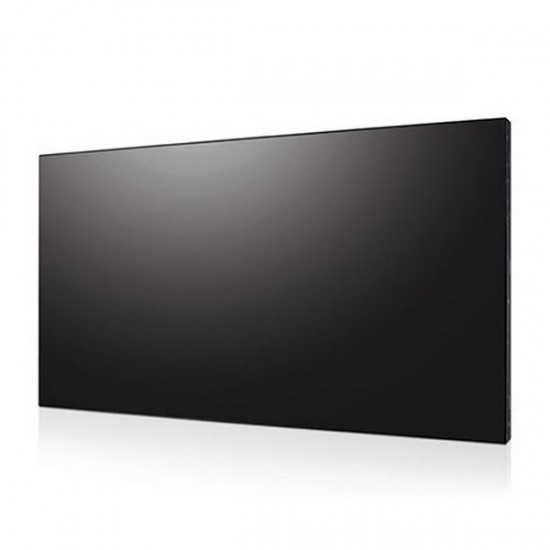

PN-46D AG Neovo 46" LED Super Narrow Bezel Display 1920 x 1080 VGA/HDMI/BNC/DVI

Specifications:

Panel

• Panel Type - LED-Backlit TFT LCD (MVA panel)
• Panel Size - 46”
• Max. Resolution - FHD 1920 x 1080
• Pixel Pitch - 0.53 mm
• Brightness - 450 cd/m2 (Typical)
• Contrast Ratio - 4000 : 1 (Typical)
• Viewing Angle (H/V) - 178°/178° (Typical)
• Display Colour - 1.07 B
• Response Time (GTG) - 3 ms

Frequency (H/V)

• H.Freq - 30kHz – 75kHz
• V.Freq - 50Hz – 75Hz

Input

• VGA - 15-Pin D-Sub
• DVI - 24-Pin DVI-D
• HDMI - HDMI x 2
• DisplayPort - DisplayPort
• CVBS - BNC
• Component (YPbPr) - RCA
• S-Video - 4-Pin Mini DIN

Output

• VGA - 15-Pin D-Sub
• DVI - DVI
• CVBS - BNC

External Control

• RS-232 in/out - 9-Pin D-Sub
• RJ45 - RJ45
• IR in/out - 3.5ø Jack

Audio

• Audio In - 1 x Stereo audio in for PC (audiojack, 3.5ø)1 x Stereo audio in (RCA)
• Audio Out - 1 x Stereo audio out (RCA)
• Internal Speaker - 12W x 2
• External Speaker Out - 12W x 2

Power

• Power Supply - Internal
• Power Requirements - 100 - 240V, 50 - 60Hz
• Consumption - < 150W (On)< 0.5W (Active Off/Off)

Operating Conditions

• Temperature - 0°C ~ 40°C (32°F ~ 104°F)
• Humidity - 10%~90% (No condensation)

Storage Conditions

• Temperature - -20°C ~ 60°C (-4°F ~ 140°F)
• Humidity - 10%~90% (No condensation)

Mounting

• VESA FPMPMI - Yes (400 x 400mm)

Dimensions

• w/o Base (W x H x D) - 1024 x 578 x 112 mm(40.3” x 22.8” x 4.4”)
• Packaging (W x H x D) - 1190 x 754 x 290 mm(46.9” x 29.7” x 11.4”)

Weight

• w/o Base - 25.0 kg (55.0 lbs)
• Packaging weight - 31.5 kg (69.3 lbs)

Regulation Approval

• Certifications & Compliance - CB, CE, FCC, BSMI, RoHS, WEEE,REACH, GOST-R

Accessories

• Supplied - CD ROM (user manual), Remotecontrol with AAA batteries, Powercord, 15-Pin D-Sub cable, IR cables

PN-46D Specifications PDF
