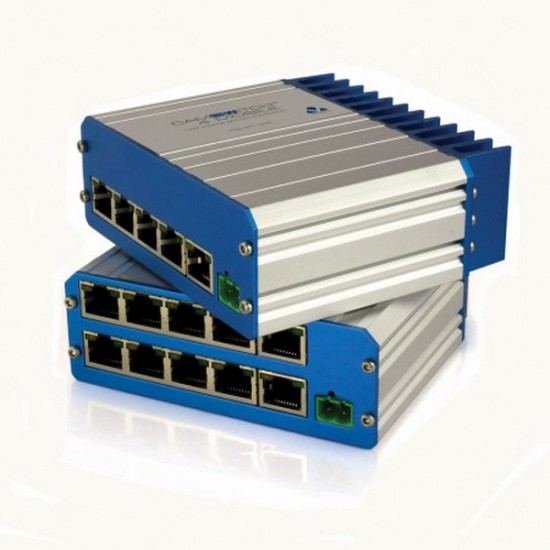

VCS-4P1-MOB Veracity CAMSWITCH 4 Mobile features 4 802.3at POE ports
- Brand: Veracity
- Model: VCS-4P1-MOB
- SKU: VCS-4P1-MOB
- MPN: VCS-4P1-MOB
$271.00
CAMSWITCH Mobile is the ideal solution for installing IP cameras and other POE and network devices in transport, battery/solar powered, and other low-voltage applications. It integrates a 5 or 10 port 10/100 Ethernet switch with the capability to convert a 8 to 40 volt DC supply into an 80 watt IEEE 802.3af/at compliant power source.
CAMSWITCH 4 Mobile features 4 802.3at POE ports, 1 non-POE port, and a versatile DC power input.
CAMSWITCH 8 Mobile features 8 802.3at POE ports, 2 non-POE ports, and a versatile DC power input.
Features:
Network
- 5/10 port unmanaged 10/100 switch
- Auto-configuring for speed (10BASE-T or 100BASE-T) and duplex
- Use with Cat 5, Cat 5e or Cat 6 patch or crossover cables
- VCS-8P2-Mob supports VLAN trunking
Power
- Unit power 3W
- DC input: 8-40VDC, 2.5-13A
- Battery circuit fuse required
- POE outputs: IEEE802.3af / IEEE802.3at compatible
- Total device power budget up to 80 watts (see manual)
- Non-isolated POE, use with IEEE compliant devices only
Dimensions
- W: 110m / 131mm with side clips
- D: 100mm
- H: 40mm
- Weight 290g (VCS-4P1-Mob) / 350g (VCS-8P2-Mob)
Specifications
POWER INPUT
- Connector - Detachable screw terminal
- Voltage - 8.5 - 40V (minimum startup voltage is 10.5V, supports engine cranking and reduce overdischarge) DC only (contact Veracity for 24V AC applications)
- Fusing - The use of an external fuse is recommended. Rating: 5 amps for 24V DC or 10 amps for 12V DC supply, slow blow type
POE OUTPUTS
- POE standard
- IEEE 8023.af / IEEE 802.3at compatible
- Not isolated from DC input; for use in closed system transport applications;
- connected devices must be IEEE compliant
- Veracity enhanced POE supports maximum efficiency and range
POWER BUDGET
- 24V - input 80 watts total camera power
- 12V - input 80 watts ( reduce to 65 watts for max 30ºC temperature rise above ambient )
- <12V input - 60 watts ( reduce to 50 watts if voltage can drop below 10V ) POE power conversion produces heat; the above limits are for horizontal mounting with ventilation Installation in enclosed spaces will cause additional heating and power limiting. Warning: enclosure may become hot in operation
Ethernet INTERFACE
- Connector - RJ45, 5-port unmanaged 10/100 switch
- Rates - 10BASE-T or 100BASE-T and duplex, auto-configuring for speed
- Cable - Straight through or crossover Cat 5, Cat 5e or Cat 6 patch VCS-8P2-MOB supports VLAN trunking
LED INDICATORS
- Green
- POE Ports Constant POE enabled
- Off No POE requested
- Green
- Non POE Ports Constant Power OK
- Off No power
- Yellow Constant
- Ethernet OK
- Blink Network activity
PHYSICAL/ENVIRONMENTAL
- Dimensions - L 110mm / 131mm with side clips W 100mm including connectors H 40mm
- Mounting (brackets inc.)- 5mm mounting holes on 122mm centres
- Weight - 290g [10.2oz] (VCS-4P1-MOB) / 350g [12.3oz] (VCS-8P2-MOB)
- Operating temperature - -10oC to 50oC [14oF to 122oF]
- Relative humidity - Up to 85%, non-condensing
- Compliance - CE, FCC, RoHS
