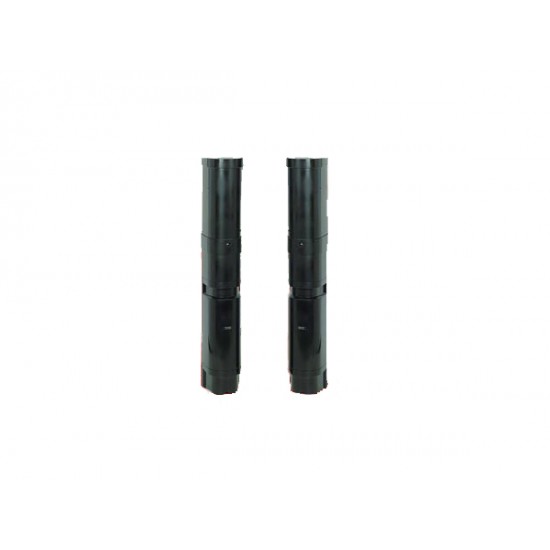

COM-IN-50HF TAKEX 165' Intelligent Quad Beam & Microwave sensor, AND-OR Gated, N/O N/C 10-30VDC

COM-IN-50HF TAKEX 165' Intelligent Quad Beam & Microwave sensor, AND-OR Gated, N/O N/C 10-30VDC
COM-IN-50HF TAKEX 165' Intelligent Quad Beam & Microwave sensor, AND-OR Gated, N/O N/C 10-30VDC
  • Brand: Takex
  • Model: COM-IN-50HF
  • SKU: COM-IN-50HF
  • MPN: COM-IN-50HF
Based on 0 reviews. - Write a review
$980.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Model Number: COM-IN-50HF

TAKEX 165' Intelligent Quad Beam & Microwave sensor, AND-OR Gated, N/O N/C 10-30VDC

  • Detection System - Microwave / Infrared
  • Protection Distance Outdoors - 3.3ft. to 165ft.
  • Response Time:
    • Photoelectric beam sensor: 50msec. to 700msec
    • Microwave: 40msec. to 300msec.
  • Frequency Selection - Photobeam: 4 selectable channels
  • Alarm Output - Dry contact relay output 1C, Contact action: Interruption time + delay time (approx. 2sec.), Contact capacity: 30V (AC/DC) 1A
  • Environmental Output - Dry contact replay output NO or NC, Contact capacity: 30V (AC/DC) 0.5A
  • Tamper Output - Dry contact output 1b (N/C), Contact capacity: 30V (AC/DC) 0.1A
  • Power Supply - 12 to 30V DC
  • Current Consumption - 165mA or less at protection.
    • Transmitter: 65mA or less
    • Receiver: 100mA or less
  • Weight:
    • Transmitter: 6.1lbs
    • Receiver: 6.6lbs
  • External Appearance - Wine red PC resin
