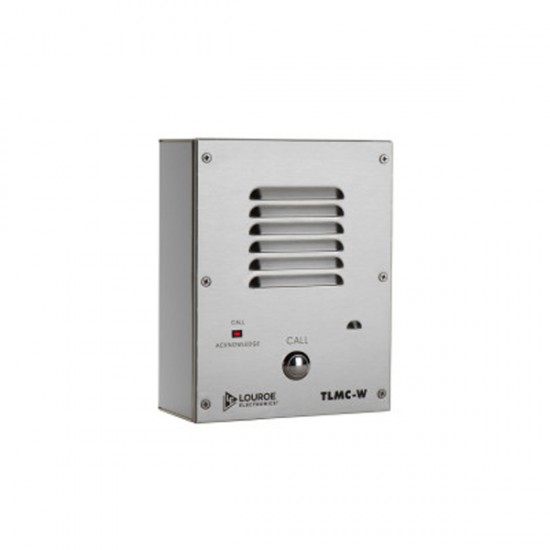

LE-169 Louroe TLMC-W 4" Speaker Microphone w/Pushbutton/Wall Flush Mount
- Brand: Louroe
- Model: LE-169
- SKU: LE-169
- MPN: LE-169
$397.28
- Product Name: TLMC-W
- Remote call station designed for a surface wall mount
- Mounted within vandal resistant stainless steel enclosure
- Enclosed call button
- Omni-directional microphone, within 30′ diameter
- 4″ Speaker – 5W power handling
- Line Level Output (0dBV) from Microphone
TLMC-W is a vandal resistant remote call station with a built-in microphone and call button. It is weather resistant and is designed for outdoors. The call button when pressed activates a Louroe sound activated alarming base station such as the DG Series. Two backboxes are included with the TLMC-W : one aluminium (model AOPSP) for surface mounting to a wall or flat surface and one plastic (model TLMC) for flush mounting.
Dimensions
- Faceplate - 6.25″ H x 8″ W
- Backbox - 8″ L x 6.25″ W x 2.75″ D
Specifications
- Output of microphone (Mic) - Line Level (0 dB, 600W @ 1KW)
- Frequency Response (Mic) - 40 Hz to 15 kHz
- Current Drain (mic) - 10 mA
- Speaker - 3”, 2W w/ 70V transformer
- Faceplate -8”H x 6 1/4”W
- Backbox - 8”H x 6 1/4”W x 2 3/4”D 8”H x 6 1/4”W x 2 5/8”D
- Weight (Faceplate) - 2 Lbs
- Weight (with backboxes) - 4 lbs 8 oz
- Shipping Weight - 6 lbs
