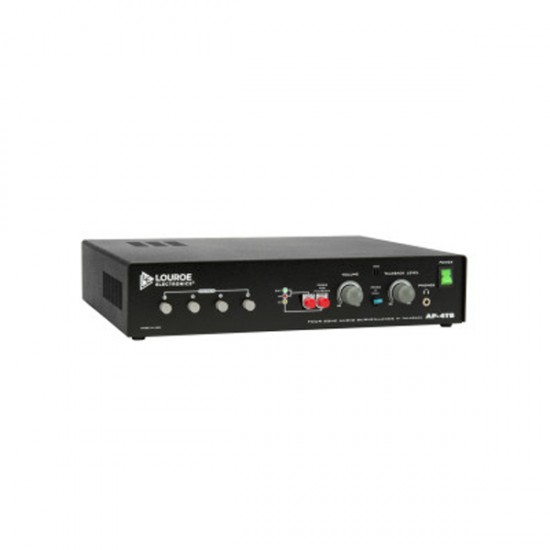

LE-322 Louroe AP-4TB 4 Zone Base Station With Talkback

• Product Name: AP-4TB

• Four zone listen and talkback audio base station
• Built in microphone and speaker
• RCA input/ output to DVR for recording and playback
• Volume control for both listen and talkback
• 3.5 mm headphone jack for private listening
• May be located up to 1000' from the Louroe microphone

AP-4TB is a four zone non-alarming audio monitoring base station with listen and talkback. As a system (with Louroe speaker/microphones), it provides live audio monitoring from four zones, one at a time, with a built-in speaker and a built-in microphone for talkback to the remote area. Zone selection is by push button. Model AP-4TB is designed to interface with a CCTV or DVR. Special filtering enhances the sound quality of audio during playback. For the rackmount version, request model AP4-TB-RM

• Dimensions - 12.5? L x 10.25? W x 2.5? H

Specifications

• Input sensitivity(talkback microphone) - 45 dB
• Monitor power output - 1W @ 8W
• Talkback power output - 1W into 70V Line
• Audio output impedance - 600W
• Audio input impedance - 10k
• Audio frequency response (flat) - 100 Hz to 10kHz
• Audio frequency response (enhanced) - -20 dB @ 200 Hz to +8dB @3 kHz
• Headphone impedance - 8 to 600W
• Power input - 120 Vac, 60Hz
• Fuse - ¼ A slow-blow
• Dimensions - 10¼"L x 12½"W x 2 ½”H
• Weight - 8 lbs 6 oz
• Shipping Weight - 10 lbs

LE-322 Specifications PDF
