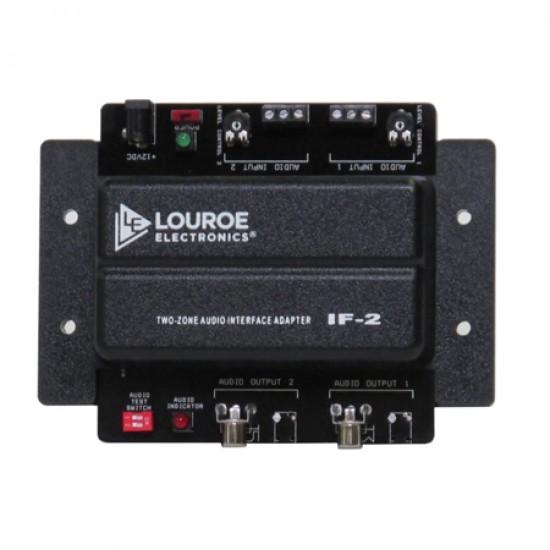

LE-273 Louroe IF-2 2 Zone Audio Interface Adapter
- Brand: Louroe
- Model: LE-273
- SKU: LE-273
- MPN: LE-273
$228.26
- Product Name: IF-2
- Two zone audio interface
- Provides 12 Vdc power to the microphone
- Volume control to prevent overdriving
- RCA and 3.5 mm audio output
- Compatible with most recording devices that accept line level audio inpu
IF-2 is a two zone audio interface. It serves as an interconnection device between a Louroe microphone and a DVR, IP camera, encoder or recorder..
- Dimensions - 6.125? L x 4.625? W x 1.375? H
Specifications
- Input (3-pin terminal block) - Line Level
- Audio Input Impedance - 20kW
- Audio Output Impedance - IF-2 400W IF-4/8 600W @
- Audio Output Gain - +10dB
- Power Requirements - +12 Vdc, 500mA
- Dimensions (IF-2) - 6 1/8”L x 4 5/8”W x 1 3/8”H
- Dimensions (IF-4/IF-8) - 11 1/2”L x 4 3/4”W x 1 1/2”H
- Weight
- IF-2 7 oz
- IF-8 13.5 oz
- IF-4 12.5 oz
- Shipping Weight
- IF-2 1 lb
- IF-4 2 lbs
- IF-8 2 lbs
