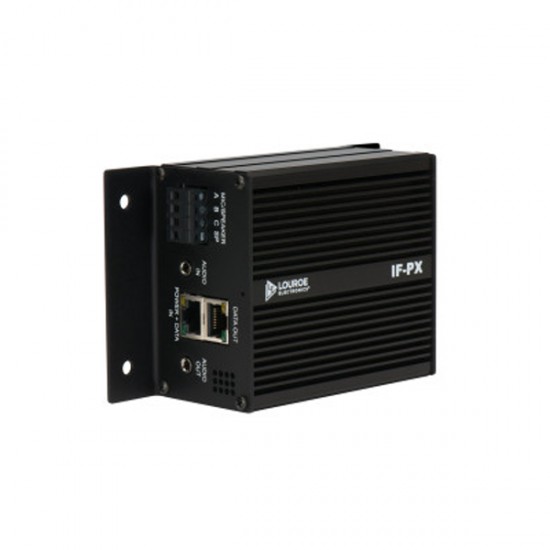

LE-520 Louroe IF-PX Audio Interface PoE Extractor

• Product Name: IF-PX

• Single zone power over Ethernet extractor
• Supports mode A and B power options IEEE (802.3af)
• +12 Vdc power output for external equipment
• Variable gain audio output potentiometer
• Audio in/out for IP cameras
• Thermal overload protection
• Short circuit protection
• Data only RJ-45 output jack

IF-PX is an audio-oriented, single zone power over Ethernet extractor that extracts power from an ethernet connection to power Louroes one-way or two-way audio solutions. The IF-PX interfaces with Louroe speakerphones, microphones and other external devices that require a 12 Vdc supply such as system accessories and non-PoE cameras. The IF-PX also permits audio and video equipment to be powered by a single run of CAT5, CAT5e or CAT6 cable. The IF-PX enhances the functionality of audio security systems by eliminating the need for a power supply. It also provides seamless installation with 15W PoE (802.3af) standard and easy integration with IP cameras.

• Dimensions - 6? L x 3.5? W x 2.125? H

Specifications

• Ethernet Connectors - RJ45 CAT 5 Input and Output Jacks
• Voltage Input - 36V - 57V
• DC Output - 12 Vdc, 800mA
• Power Supply (Optn.) - 12Vdc, 2A, Ext. Power Supply
• Connectors - RJ-45, DC Jack, Termirnal Block for Microphone/Speaker,3.5mm Audio In/Out
• Audio Input/Output - Line Level
• Audio Output Gain - Up to +15dB
• Dimensions - 6”L x 3 .5 ”W x 2.125” H
• Weight - 13 oz.
• Material - Black Anodized 14 gauge) Aluminum

LE-520 Specifications PDF
