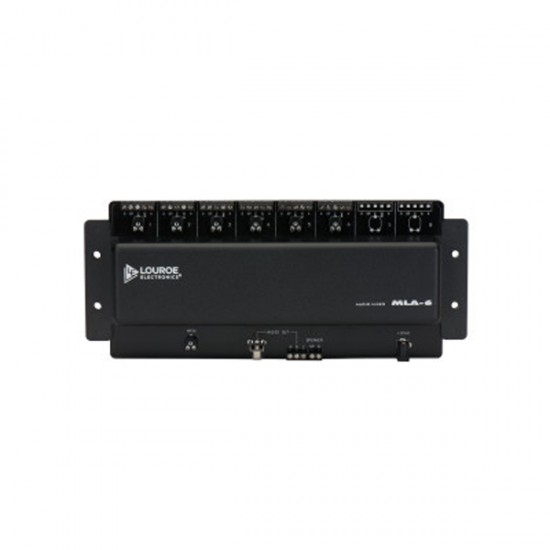

LE-111 Louroe MLA-6 6 Microphone Audio Mixers
- Brand: Louroe
- Model: LE-111
- SKU: LE-111
- MPN: LE-111
$269.99
- Product Name: MLA-6
- Six channel audio mixer (6-into-1)
- Powered via base station or discrete power supply
- 10db of Gain
- Volume potentiometer for each channel
- Effectively increases the audio pickup area without the need for multiple audio inputs on the base station, DVR, IP Camera, etc..
MLA-6 is a passive mixer for combining six microphones, or six speaker/microphones to one audio monitoring zone. It is mounted between the microphones and the Louroe Base Station. It has adjustment knob for microphone balance.The microphones are combined for zone expansion and are not on separate channels. The MLA-6 is powered by the Louroe Base Station.
- Dimensions - 11.5? L x 4.75? W x 1.5? H
Specifications
- Input Impedance - 18 KW
- Output - Line level (0dBV, 1kW @1 kHZ +10dB max gain adjustable
- Frequency Response - 100 Hz to 10 kHz
- Current Drain - 25 mA
- Voltage Supply - 12 Vdc, 500 mA
- Dimensions - 11 1/2”L x 4 3/4”W x 1 1/2”H
- Weight - 10 oz
- Weight - 3 lbs
