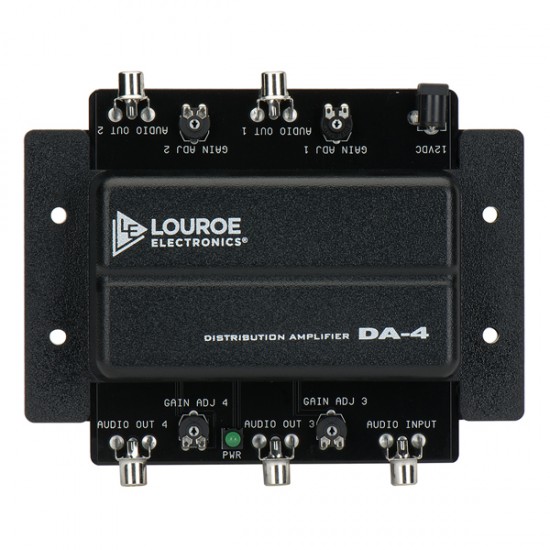

LE-224 Louroe DA-4 4 Zone Distribution Amplifier
- Brand: Louroe
- Model: LE-224
- SKU: LE-224
- MPN: LE-224
$228.26
- Product Name: DA-4
- Four channel audio distribution amp (1-into-4)
- 15db of Gain — Volume potentiometer for each channel
- Distribute a single audio zone/channel to mulitple devices (DVR, IP Camera, Base Station, etc.)
DA-4 is an Audio Distribution Amplifier with one audio input and four audio outputs. It receives line level audio signals from the Louroe microphone and distributes it to up to four receiving devices – VCR, DVR, CCTV monitors with amplifiers or other audio devices that accept line level input. Each output has a gain adjust potentiometer for correcting audio level. Maximum gain is 15dB.
Dimensions
- 6.125" L x 4.625" W x 1.375"H
Specifications
- Type of audio connections - RCA
- Current drain - 25 mA
- Output - +15dB
- Maximum gain (per output) - Line Level (0dBV, 1kW @ 1kHZ)
- Power input - 12 Vdc, 500mA
- Dimensions - 6 1/8”L x 4 5/8”W x 1 3/8”H
- Weight - 8 oz
- Shipping Weight - 2 lbs
