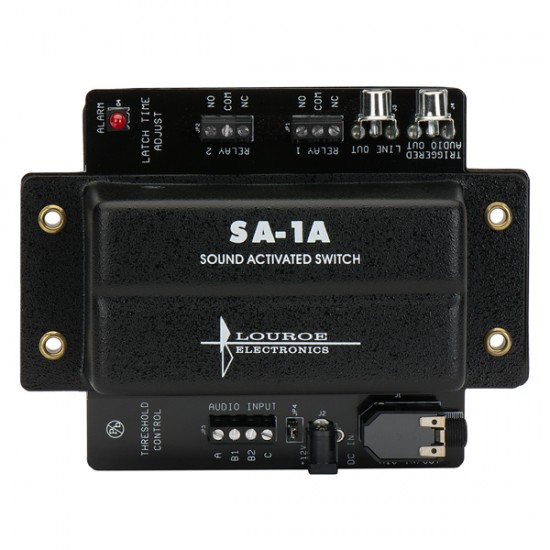

LE-230 Louroe SA-1A Sound Activated Switch
- Brand: Louroe
- Model: LE-230
- SKU: LE-230
- MPN: LE-230
$263.58
- Product Name: SA-1A
- Sound activated switch
- Adjustable 'Sensitivity' potentiometer
- Provision for balanced audio source
- Two threshold-triggered relays
- Adjustable relay latching time — 500ms to 60s
- Alarm LED
SA-1A is a sound activated switch designed for applications where audio is required once a predetermined amplitude threshold has been exceeded. Additionally, the unit has two sets of relay contacts for activating cameras, lights, machinery or other annunciations. Automatic re-set is adjustable between 0.5 to 60 seconds. When used with Louroe Microphone and Base Station, the SA-1A is powered by the base station. As a stand alone unit (without a base station) 12 Vdc power is required.
Dimensions
- 6.125" L x 4.625" W x 1.875" H
Specifications
- Current drain - 70 mA
- Audio input impedance - 10KW
- Relay contact - 5A @ 277 Vac or 5A @ 30Vdc
- DC input - 12Vdc, 500mA
- Relay latch time - 0.5 to 60 seconds
- Dimensions - 6 1/8”L x 4 5/8”W x 1 7/8”H
- Weight - 7 oz
- Shipping Weight - 1lb
