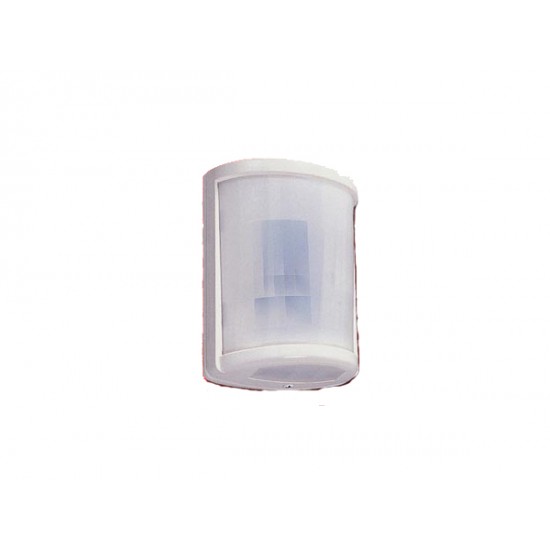

PA-470L TAKEX Passive IR Sensor 53' Wide Angle & 66' Long Range, Interchange Lens, Quad Element

PA-470L TAKEX Passive IR Sensor 53' Wide Angle & 66' Long Range, Interchange Lens, Quad Element
PA-470L TAKEX Passive IR Sensor 53' Wide Angle & 66' Long Range, Interchange Lens, Quad Element
  • Brand: Takex
  • Model: PA-470L
  • SKU: PA-470L
  • MPN: PA-470L
Based on 0 reviews. - Write a review
$102.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Model Number: PA-470L

TAKEX Passive IR Sensor 53' Wide Angle & 66' Long Range, Interchange Lens, Quad Element

  • Detection System - Passive infrared (Quad + Fuzzy logic)
  • Protection Distance Indoors - 53ft. Wide angle, 66ft. Long range
  • Alarm Output - Dry contact relay (N/C, N/O selectable). Reset: approx. 2sec., 30V, 0.25A max. (protective resistance 3.3Ω)
  • Tamper Output - Dry contact relay (N.C.) Open when cover or body is detached, 30V 0.1A max.
  • Alarm Led Red - * Warm up: flickering (every 0.5 sec.) * Alarm: solid (approx. 2 sec. ) * Memory: continuous solid * Trouble alarm: continuous solid (LED disable)
  • Supply Power - 9 to 18V DC (non polarity)
  • Current Consumption - 28mA max.
  • Ambient Temperature - +14°F to +122°F without condensation
  • Installation Indoor - wall / pillar
  • Wiring - Terminals
  • Weight - 5.8oz.
  • External Appearance - Body: ABS resin. Cover: PE resin
