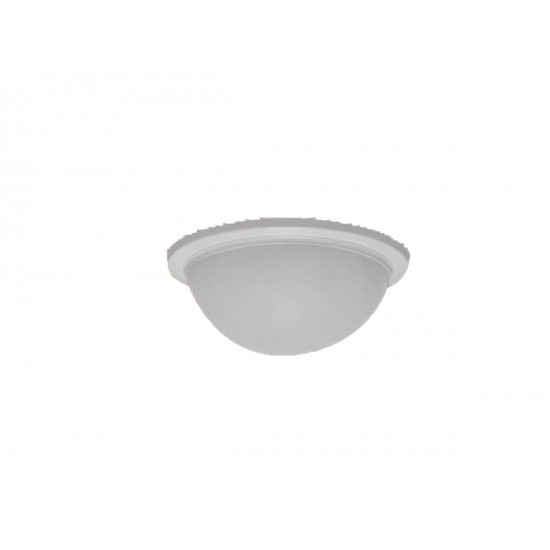

PA-5325 TAKEX Passive IR Sensor 82' Long Range, Wall & Ceiling Mount, "Snap in Base", N/O N/C Slight Motion Detection

PA-5325 TAKEX Passive IR Sensor 82' Long Range, Wall & Ceiling Mount, "Snap in Base", N/O N/C Slight Motion Detection
PA-5325 TAKEX Passive IR Sensor 82' Long Range, Wall & Ceiling Mount, "Snap in Base", N/O N/C Slight Motion Detection
  • Brand: Takex
  • Model: PA-5325
  • SKU: PA-5325
  • MPN: PA-5325
$126.00

Model Number: PA-5325

TAKEX Passive IR Sensor 82' Long Range, Wall & Ceiling Mount, "Snap in Base", N/O N/C Slight Motion Detection

  • Detection System - Passive infrared (QUAD)
  • Protection Distance - Indoors Vertical curtain 82ft. max.
  • Alarm Output - Dry contact relay: (N.O./N.C. changeover). Reset: approx. 2sec. 30V AC/DC 0.25A max. (protective resistor 3.3Ω)
  • Tamper Output - Dry contact relay (N.C.) Open when cover or body is detached, 30V 0.1A max.
  • Supply Power - 9.5 to 30V DC (non polarity)
  • Current Consumption - N.C. contact: 25mA max. / N.O. contact: 35mA max.
  • Ambient Temperature - +14°F TO +131°F (without dewdrops)
  • Installation - Indoor ceiling, wall
  • Wiring - Terminals
  • Weight - 8.75oz.
  • External Appearance - Body: ABS resin. Cover: PE resin
