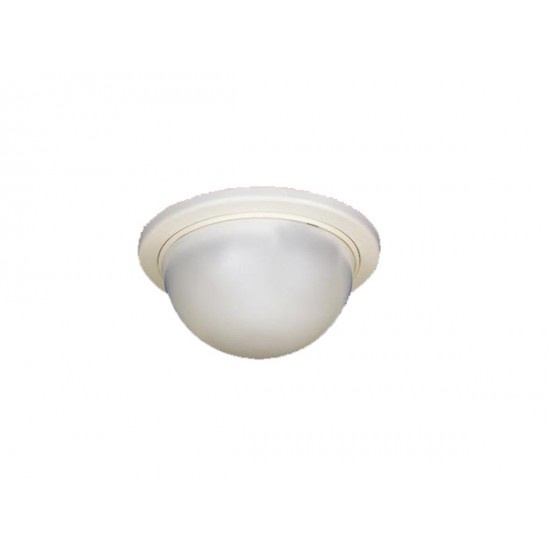

PA-6612E TAKEX Passive IR Sensor 40' Wide Angle, Double Dual Element,Twin Mirror, Pet Immune 40lbs,"Snap In Base", N/O N/C

PA-6612E TAKEX Passive IR Sensor 40' Wide Angle, Double Dual Element,Twin Mirror, Pet Immune 40lbs,"Snap In Base", N/O N/C
PA-6612E TAKEX Passive IR Sensor 40' Wide Angle, Double Dual Element,Twin Mirror, Pet Immune 40lbs,"Snap In Base", N/O N/C
  • Brand: Takex
  • Model: PA-6612E
  • SKU: PA-6612E
  • MPN: PA-6612E
$93.00

Model Number: PA-6612E

TAKEX Passive IR Sensor 40' Wide Angle, Double Dual Element,Twin Mirror, Pet Immune 40lbs,"Snap In Base", N/O N/C

  • Detection System - Passive infrared
  • Protection Distance - Indoors 40ft. max.
  • Alarm Output - Dry contact (N/C, N/O selectable).
    • Reset: approx. 2sec., 24V, 0.25A max. (protective resistance 3.3Ω)
  • Alarm Memory Led Red
    • Auto: 3min. flashing, 47min. lighting and automatically reset.
    • Manual: manual control
  • Supply Power - 10.5 to 18V DC (non-polarity)
  • Ambient Temperature - +5°F to +131°F without condensation
  • Installation - Indoor ceiling mount
  • Wiring - Terminals on seperate base unit
  • Weight - 4.7oz.
  • External Appearance
    • Body: ABS resin
    • Cover: PE resin
