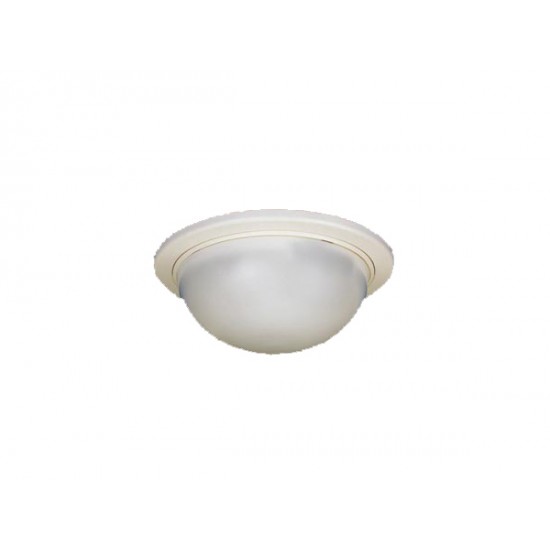

PA-6810E TAKEX Passive IR Sensor 50' Diam., 360 Degree, Dual Element, up to 16' Ceiling, "Snap In Base"

PA-6810E TAKEX Passive IR Sensor 50' Diam., 360 Degree, Dual Element, up to 16' Ceiling, "Snap In Base"
PA-6810E TAKEX Passive IR Sensor 50' Diam., 360 Degree, Dual Element, up to 16' Ceiling, "Snap In Base"
  • Brand: Takex
  • Model: PA-6810E
  • SKU: PA-6810E
  • MPN: PA-6810E
$62.00

Model Number: PA-6810

TAKEX Passive IR Sensor 50' Diam., 360 Degree, Dual Element, up to 16' Ceiling, "Snap In Base"

  • Detection System - Passive infrared
  • Protection Distance - 59ft. diameter when mounted at 16.5ft height
  • Alarm Output Dry contact (Semi-Conductor) (N/C, N/O selectable)
    • Reset: Approx. 2 sec., 30V, 0.25A max. (protective resistance 3.3Ω)
  • Alarm Led Red - Flashing at warming up. Lighting at alarm (LED disabled)
  • Alarm Memory Led Red
    • Auto: 3min. flashing, 47min. lighting and automatically reset.
    • Manual: manual control
  • Supply Power - 10.5 to 18V DC (non-polarity)
  • Current Consumption
    • N/C: 25mA max.
    • N/O: 35mA max.
  • Ambient Temperature - +5°F to +131°F without condensation
  • Installation - Indoor ceiling (wall mount with optional attachment BCW-401)
  • Wiring - Terminals on seperate base unit
  • Weight - 3.85oz
  • External Appearance
    • Body: ABS resin.
    • Cover: PE resin
