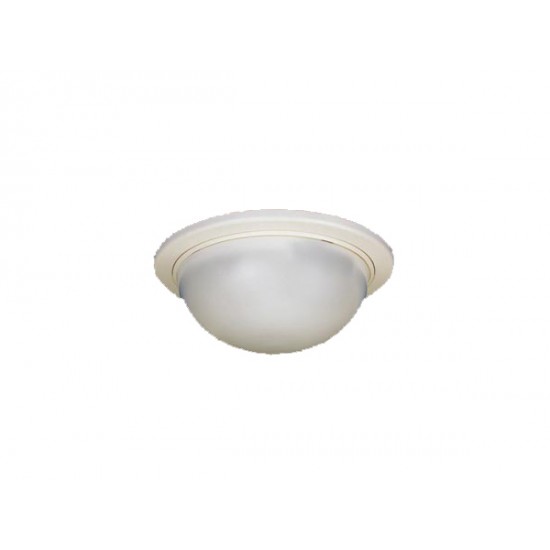

PA-6820 TAKEX Passive IR Sensor 66' Vertical Curtain, Dual Element, up to 16' Ceiling, "Snap In Base"
- Brand: Takex
- Model: PA-6820
- SKU: PA-6820
- MPN: PA-6820
$62.00
Model Number: PA-6820
TAKEX Passive IR Sensor 66' Vertical Curtain, Dual Element, up to 16' Ceiling, "Snap In Base"
- Detection System - Passive infrared
- Protection Distance - 66ft. vertical curtain when mounted at 8.3ft. height
- Alarm Output Dry contact (Semi-Conductor) (N/C, N/O selectable)
- Reset: Approx. 2 sec., 30V, 0.25A max. (protective resistance 3.3Ω)
- Alarm Led Red - Flashing at warming up. Lighting at alarm (LED disabled)
- Alarm Memory Led Red
- Auto: 3min. flashing, 47min. lighting and automatically reset.
- Manual: manual control
- Supply Power - 10.5 to 18V DC (non-polarity)
- Current Consumption
- N/C: 25mA max.
- N/O: 35mA max.
- Ambient Temperature - +5°F to +131°F without condensation
- Installation - Indoor ceiling (wall mount with optional attachment BCW-401)
- Wiring - Terminals on seperate base unit
- Weight - 3.85oz
- External Appearance
- Body: ABS resin.
- Cover: PE resin
