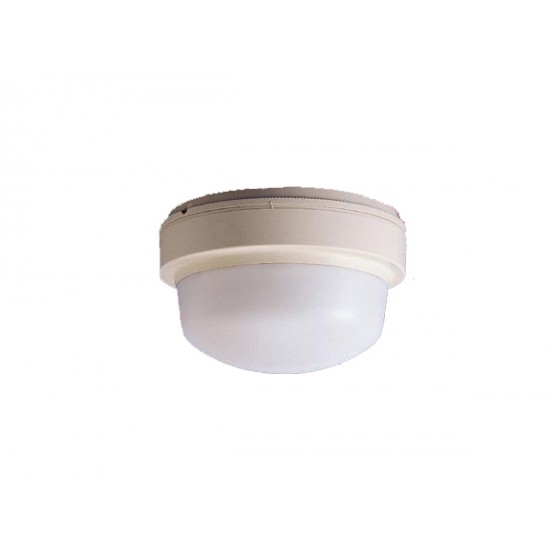

PA-7100 TAKEX Passive IR Sensor 40' 360 Degree, Digital Double Quad, PIR Sensor, ATC, N/O N/C Relay
- Brand: Takex
- Model: PA-7100
- SKU: PA-7100
- MPN: PA-7100
$170.00
Model Number: PA-7100
TAKEX Passive IR Sensor 40' 360 Degree, Digital Double Quad, PIR Sensor, ATC, N/O N/C Relay
- Detection System - Passive infrared (QUAD)
- Alarm Output - 0.1A, 30V, 1C (SPDT) Reset: 2 sec. ± 1 sec.
- Supply Power - 9V to 18V DC (non polarity)
- Current Consumption - 15mA (at 12V), 20mA (at aim adjustment)
- Ambient Temperature - +14°F to +122°F
- Installation - Indoor ceiling, wall
- Weight - 11.6 oz.
