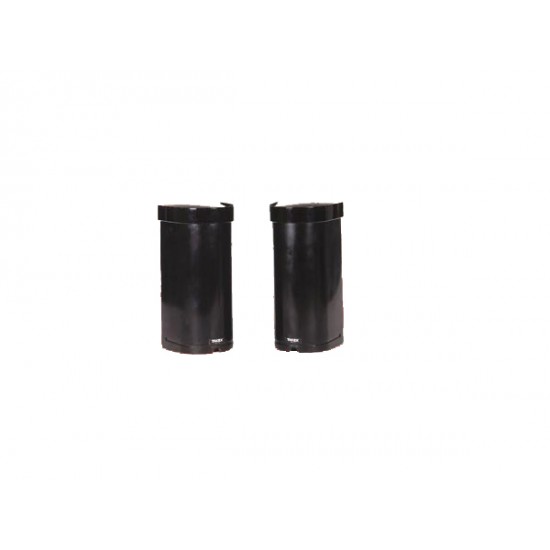

MW-50 TAKEX 165' Point-to-Point Microwave sensor, N/O N/C 10-30VDC

MW-50 TAKEX 165' Point-to-Point Microwave sensor, N/O N/C 10-30VDC
MW-50 TAKEX 165' Point-to-Point Microwave sensor, N/O N/C 10-30VDC
  • Brand: Takex
  • Model: MW-50
  • SKU: MW-50
  • MPN: MW-50
Based on 0 reviews. - Write a review
$409.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Model Number: MW-50

TAKEX 165' Point-to-Point Microwave sensor, N/O N/C 10-30VDC

  • Detection System - Microwave
  • Wavelength - 24.11Ghz
  • Protection Distance - Outdoors 3.3ft. to 165ft.
  • Signal Arrival Distance - Microwave: approx. 330ft.
  • Response Time - 40msec. to 300msex.
  • Alarm Output - Dry contact relay output 1C N/O and N/C, Contact action: Interruption time output. Contact capacity: 30V (AC/DC) 0.5A or less.
  • Tamper Output - Dry contact output 1b (N/C), Contact capacity: 30V (AC/DC) 0.1A
  • Power Supply - 12 to 30V DC
  • Current Consumption - Transmitter: 50mA, Receiver: 50mA
  • Weight - Transmitter: 1.56lbs, Receiver: 1.67lbs
  • External Appearance - Wine red PC resin
