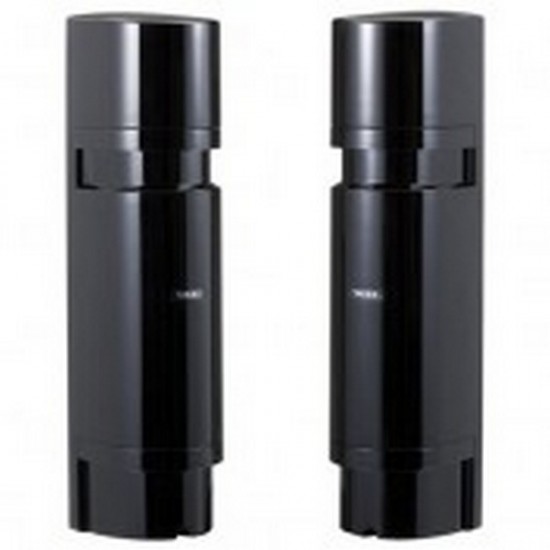

PXB-100SW TAKEX 330' / 660' Intelligent Double Modulated Quad Beam,Selectable Relay Output N/O N/C Relay, 12 to 30VDC

Specifications

• Model - PXB-100SW
• Product type - Photoelectric Beam Sensor
• Detection system - Near infrared pulsed beam interruption system (TX-RX 4 beam simultaneous interruption)
• Infrared beam - Double modulation pulsed beam by LED
• Protection distance - Outdoor 100m (330ft) or less Indoor 200m (660ft) or less
• Max. beam range - Outdoor 1000m (3300ft) or less Indoor 1000m (3300ft) or less
• Response time - 0.05 sec. to 0.7 sec. (Variable at pot)
• Supply voltage - 5 to 30VDC (polarity)
• Current consumption - Transmitter Max: 3.7mA *1 Max 8.2mA *2 Transmitter Max: 5.2mA *1 Max 9.4mA *2 Receiver Max: 2.3mA *1 Max 10mA *2 Receiver Max: 3.1mA *1 Max 10.7mA *2
• Alarm output - Dry contact relay output form N.O./N.C switchable Contact action : Interruption time (min. 2 sec) Contact capacity : 30V (AC/DC) 1A (resistive load) Protective resistor
• Environmental output - Dry contact relay output form N.O./N.C. switchable Action : activated when weather condition worsens Capacity : 30V (AC/DC) 1A (resistive load) Protective resistor
• Tamper output - Dry contact relay (N.C.) Action : activated when cover is detached Capacity : 30V (AC/DC) 0.1A (resistive load) Protective resistor
• Alarm LED - Red LED (Receiver) ON : when an alarm is initiated
• Attenuation LED - Red LED (Receiver) ON : when beam is attenuated
• Ambient temperature range - -31°F to +151°F
• Beam Adjustment - Beam Adjustment
• Functions - Modulated beam frequency selection Tone indicator Environmental module Beam power selection Transmitting power adjustment Alarm output selection Environmental output selection Monitor jack Tamper Response time adjustment Upper / Lower beam switch Wireless Checker
• Mounting positions - Outdoor, Indoor
• IP rating - IP65
• Wiring - Terminals
• Weight - Transmitter : 1500g (52.5oz) Receiver : 1550g (54.3oz)
• Appearance - PC resin (wine red)
