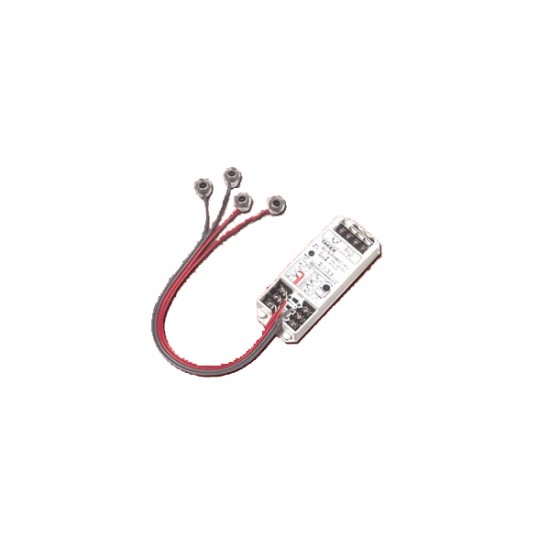

PB-10TNS TAKEX 33' Miniature Flush mount Twin Beam N/O or N/C Selectable Relay,10 to 30VDC
- Brand: Takex
- Model: PB-10TNS
- SKU: PB-10TNS
- MPN: PB-10TNS
$158.00
Model Number: PB-10TNS
TAKEX 33' Miniature Flush mount Twin Beam N/O or N/C Selectable Relay,10 to 30VDC
- Detection System - Twin Active Infrared Beam
- Wavelength - 940nm
- Modulation - 500Hz
- Protection Distance - Outdoors 10m (33ft.)
- Protection Distance - Indoors 10m (33ft.)
- Response Time - 100msec.
- Alarm Output
- Dry Relay Contact
- N/O, N/C Switch Selectable
- Reset: Approx. 1.5 secs.
- Alarm Led Red - On at Alarm
- Supply Power - 10 to 30VDC ( non polarity)
- Current Consumption - 45mA Max.
- Ambient Temperature - -31°F to + 151°F (-35°C to + 66°C)
- Installation - Wall or Post mounting
- Wiring - Terminals
- Weight - Sensors + Control: 1.3LBS (600g)
- External Appearance
- Sensors: PC Resin (clear)
- Control: ABS Resin (white)
