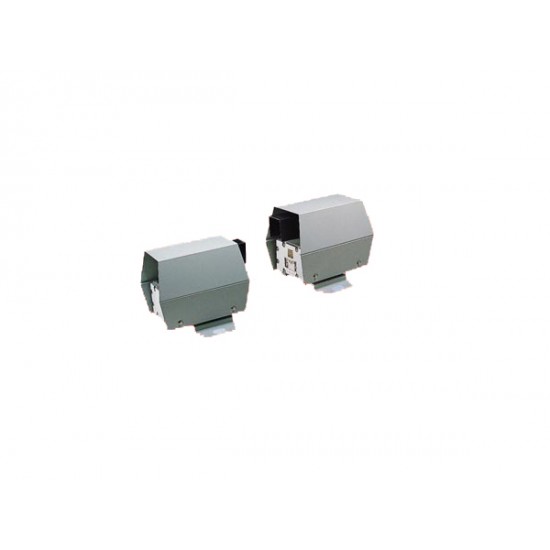

PB-400EX TAKEX 1320' Double Modulated Single Beam, N/C Relay, 100 or 200VAC, 12VDC, Class1- Class2 Rated

PB-400EX TAKEX 1320' Double Modulated Single Beam, N/C Relay, 100 or 200VAC, 12VDC, Class1- Class2 Rated
PB-400EX TAKEX 1320' Double Modulated Single Beam, N/C Relay, 100 or 200VAC, 12VDC, Class1- Class2 Rated
  • Brand: Takex
  • Model: PB-400EX
  • SKU: PB-400EX
  • MPN: PB-400EX
Based on 0 reviews. - Write a review
$6,465.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Model Number: PB-400EX

TAKEX 1320' Double Modulated Single Beam, N/C Relay, 100 or 200VAC, 12VDC, Class1- Class2 Rated

  • Detection System - Active Infrared Beam
  • Wavelength - 940nm
  • Modulation - Double Pulse Modulation
  • Protection Distance Outdoors - (1320ft.) 400m
  • Protection Distance Indoors - (2640ft.) 2000m
  • Signal Arrival Distance - (9900ft.) 4000m
  • Response Time - 50-100msec. Adjustable
  • Alarm Output:
    • Dry Relay Contact
    • Form C, N/O-C- N/C
    • Reset: Approx. 1.0 secs.
  • Contact Rating - 220VAC/DC 0.5A 10VA Max.
  • Alarm Led Red - On at Alarm
  • Power Supply - 100VAC or 200VAC Models Only
  • Current Consumption - 5.5VA / 50mA Max.
  • Ambient Temperature - -30°F to + 140°F (-35°C to + 60°C)
  • Installation - Class 1, Class 2, Hazardous Locations Post Top Mounting
  • Wiring - UL Explosion Proof Threaded Conduit Fitting
  • Weight:
    • Transmitter: 44lbs (20Kg)
    • Receiver:44lbs (20Kg)
  • External Appearance - Epoxy Resin Baked Coating Munsell N8 Stainless Steel Plate
