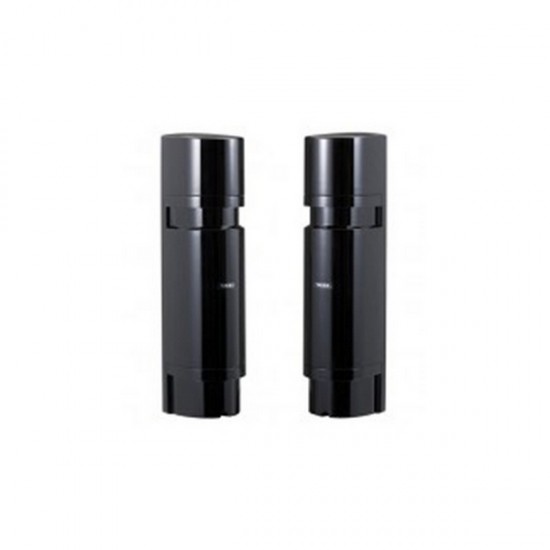

PB-IN-75SW TAKEX 250' Outdoor 500' Indoor Low Current Draw Intelligent Double Modulated Quad Beam 10 to 30VDC

Specifications

• Model - PB-IN75SW
• Product type - Photoelectric Beam Sensor
• Detection system - Simultaneous interruption of beams
• Infrared beam - LED pulsed beam, Double modulation
• Protection distance - Outdoor 75m (250ft) or less
• Max. beam range - Outdoor 750m (2500ft) or less
• Response time - 50msec. to 700msec. variable (Standard : 50msec.)
• Supply voltage - 5V to 8VDC or 10V to 30VDC (with-polarity)
• Current consumption - 5V to 8VDC : 6mA or less when armed 10V to 30VDC : 25mA or less when armed
• Alarm output - Dry contact relay Form C Reset : Interruption time + off delay 2 secs. Contact capacity : (30V AC/DC) 1A
• Environmental output - Dry contact relay Form C Action : Output when weather conditions worsen Contact capacity : 30V (AC/DC) 0.5A or less
• Tamper output - Dry contact relay Form B Action : Activated when cover is removed Contact capacity : 30V (DC) 0.1A or less
• Alarm LED - Red LED (Receiver) ON : when an alarm is initiated
• Attenuation LED - Red LED (Receiver) ON : when beam is attenuated
• Functions - Modulated beam frequency selection (4-Channel) Environmental fade out monitor Beam strength monitor output
• Ambient temperature range - -13°F to +140°F
• Mounting positions - Outdoor (Perimeter protection)
• Wiring - Terminals
• Weight - Transmitter : 1200g (42oz) Receiver : 1300g (45.5oz)
• Appearance - PC resin (wine red)
