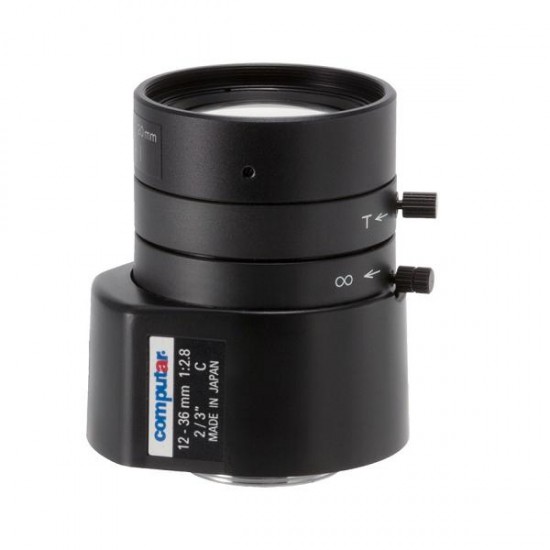

MG3Z1228FC-MP Computar C-Mount 12-36mm 1.3 Mega-Pixel Varifocal DC Auto Iris Lens
- Brand: Computar
- Model: MG3Z1228FC-MP
- SKU: MG3Z1228FC-MP
- MPN: MG3Z1228FC-MP
$200.48
Features:
- 3X 12-36mm varifocal F2.8
- 2/3" C Mount DC Auto-iris
- Manual Iris version also available
- Low Distortion.
- Assured excellent light intensity even in peripheral areas.
- Robust design with built-in locking mechanisms for focus and iris.
Specifications
- Model No. - MG3Z1228FC-MP
- Focal Length - 12mm - 36mm
- Max. Aperture Ratio - 1:2.8
- Max. Image Format - 6.6mm x 8.8mm(011mm)
- Operation Range
- Iris - F2.8 - F360C
- Focus - 0.3m - oo.
- Zoom - 12mm - 36mm
- Control
- Iris - DC Auto Iris
- Focus - Manual
- Zoom - Manual
- Object Dimension at M.O.D
- 2/3 type - 12.1cm x 9.0cm
- 1 /2 type - 8.8cm x 6.5cm
- Angle of View
- D - 50.4° - 16.8°
- H - 41.0° - 13.6°
- V - 31.2° - 10.4°
- Coil
- Drive - 190Ω
- Control - 1000Ω
Operating Temperature - -10°C - +50°C - Effective Lens Aperture
- Front - φ 27.2mm
- Rear - φ12.1mm
- Back Focal Length
- Tele - 13.5mm
- Wide - 14.7mm
- Flange Back Length - 17.526mm
- Mount - C-Mount
- Filter Size - M35.5 P=0.5mm
- Dimensions -φ41.6mm x 52mm x 53mm
- Weight - 99g
- 1/2 type
- 37.5° - 12.5°
- 30.2° - 10.0°
- 22.8° - 7.6°
- 1/3 type
- 28.3° - 9.4°
- 22.8° - 7.6°
- 17.1° - 5.7°
