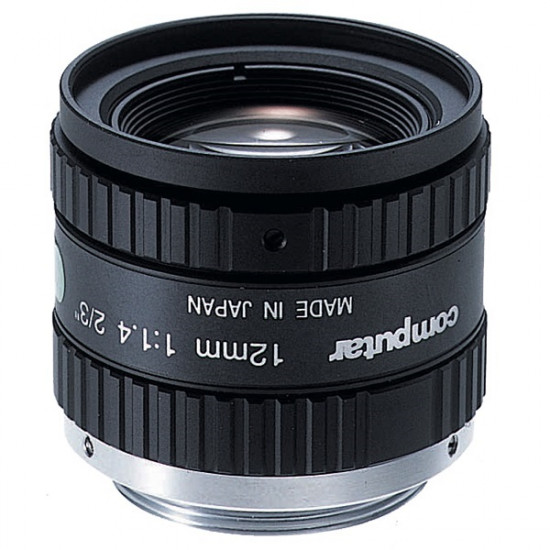

M1214-MP2 Computar 2/3" C-Mount 12mm F/1.4 1.5 Mega-Pixel Locking Iris Lens
- Brand: Computar
- Model: M1214-MP2
- SKU: M1214-MP2
- MPN: M1214-MP2
$151.00
Features:
- Captures full resolution of megapixel cameras
- Low distortion
- Assured excellent light intensity even in peripheral areas
- High contrast and sharp picture in all areas of the screen
- Compact design
- Locking set screws for focus and iris
Specifications
- Model No. - M1214-MP2
- Focal Length - 12mm
- Max. Aperture Ratio - 1:1.4
- Max. Image Format - 8.8mm x 6.6mm( 0 11 mm)
- Operation Range
- Iris - F1.4 - F16C
- Focus - 0.15m - Inf.
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D
- 2/3 type - 12.1cm x 9.0cm
- 1 /2 type - 8.8cm x 6.5cm
- Angle of View
- D - 49.2°
- H - 40.4°
- V - 30.8°
- Operating Temperature - -10°C - +50°C
- Effective Lens Aperture
- Front - 021.0mm
- Rear - 0 13.0mm
- Distortion
- 2/3type - 0.1%(y=5.5)
- 1/2type - -0.35%(y=4.0)
- Back Focal Length - 13.1mm
- Flange Back Length - 17.526mm
- Mount - C-Mount
- Filter Size - M30.5 P=0.5mm
- Dimensions - 0 33.5mm x 28.2mm
- Weight - 61.9g
- 1/2 type
- 37.0°
- 30.0°
- 22.7°
