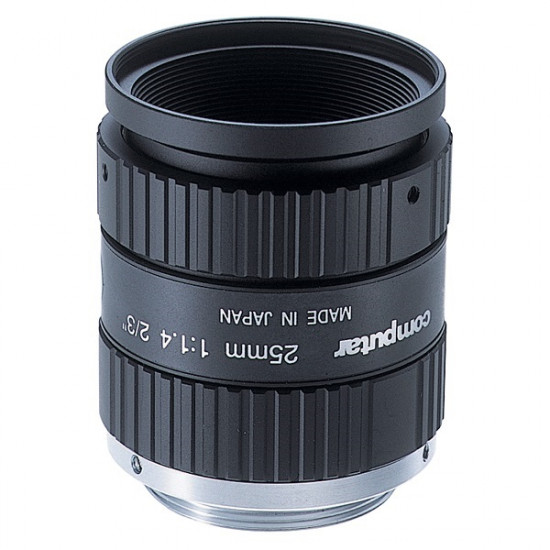

M2514-MP2 Computar 2/3" C-Mount 25mm F/1.4 1.5 Mega-Pixel Locking Iris Lens
- Brand: Computar
- Model: M2514-MP2
- SKU: M2514-MP2
- MPN: M2514-MP2
$147.00
Features:
- Captures full resolution of megapixel cameras
- Low distortion
- Assured excellent light intensity even in peripheral areas
- High contrast and sharp picture in all areas of the screen
- Compact design
- Locking set screws for focus and iris
Specifications
- Model No. - M2514-MP2
- Focal Length - 25mm
- Max. Aperture Ratio - 1:1.4
- Max. Image Format - 8.8mm x 6.6mm( 0 11 mm)
- Operation Range
- Iris - F1.4 - F16C
- Focus - 0.3m - Inf.
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D
- 2/3 type - 10.6cm x 7.9cm
- 1 /2 type - 7.7cm x 5.8cm
- Angle of View
- D - 24.9°
- H - 20.0°
- V - 15.1°
- Operating Temperature - -10°C - +50°C
- Effective Lens Aperture
- Front - 0 17.8mm
- Rear - 0 12.0mm
- Distortion
- 2/3type - -0.3%(y=5.5)
- 1/2type - -0.1%(y=4.0)
- Back Focal Length - 13.1mm
- Flange Back Length - 17.526mm
- Mount - C-Mount
- Filter Size - M30.5 P=0.5mm
- Dimensions - 0 33.5mm x 36mm
- Weight - 71.2g
- 1/2 type
- 18.2°
- 14.6°
- 11.0°
