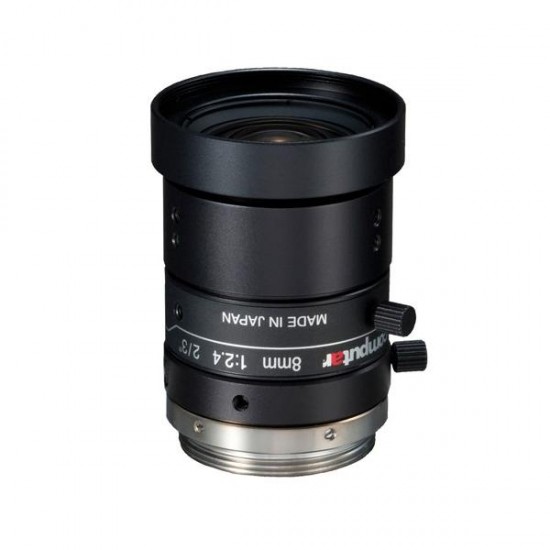

M0824-MPW2 Computar C-Mount 8mm F/2.4 5 Mega-Pixel Ultra Low Distortion Lens
- Brand: Computar
- Model: M0824-MPW2
- SKU: M0824-MPW2
- MPN: M0824-MPW2
$302.61
Features:
- 2/3" Format
- 8mm Fixed Lens
- 5 Megapixel
- C Mount
- F2.4
- 57.80º HFOV
- Ultra low distortion
- Higher relative illumination rate
Specifications
- Model No. - M0824-MPW2
- Focal Length - 8mm
- Max. Aperture Ratio - 1:2.4
- Max. Image Format - 8.8mm x 6.6mm(φ11mm)
- Operation Range
- Iris -F2.4 ‐ F16.0
- Focus - 0.05m ‐ Inf.
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D.
- 2/3 Type - 5.4cm x 7.4cm
- 1/1.8 Type - 4.3cm x 5.7cm
- 1/2 Type - 3.9cm x 5.3cm
- Angle of View
- D - 69.32°
- H - 57.80°
- V - 44.36°
- Operating Temperature - -10℃ ‐ +50℃
- Effective Lens Aperture
- Front - φ21.0mm
- Rear - φ12.0mm
- Distortion
- 2/3 type - -1.87%(y=5.5)
- 1/1.8 type - -1.55%(y=4.32)
- 1/2 type - -1.42%(y=4.0)
- Back Focal Length - 13.7mm
- Flange Back Length - 17.526mm
- Mount - C‐Mount
- Filter Size - M32.0 P=0.5mm
- Dimensions - φ32mm x 45.71mm
- Weight - 80.0g
- 1/1.8 type
- 56.90°
- 46.72°
- 35.75°
- 1/2 type
- 53.23°
- 43.74°
- 33.23°
