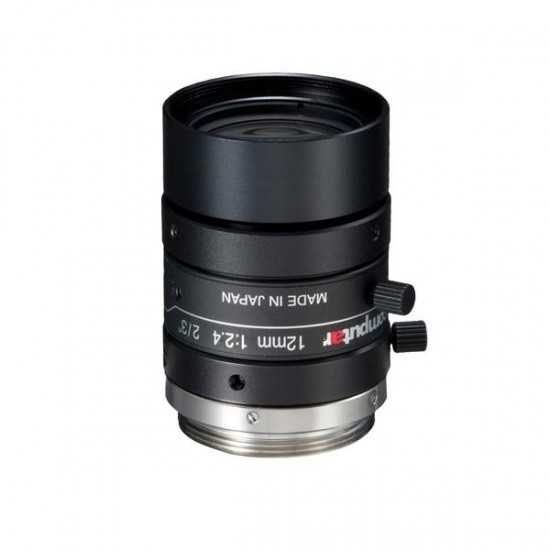

M1224-MPW2 Computar C-Mount 12mm F/2.4 5 Mega-Pixel Ultra Low Distortion Lens
- Brand: Computar
- Model: M1224-MPW2
- SKU: M1224-MPW2
- MPN: M1224-MPW2
$290.00
Features:
- 2/3" Format
- 12mm Fixed Lens
- 5 Megapixel
- C Mount
- F2.4
- 39.8º HFOV
- Ultra low distortion
- Higher relative illumination rate
Specifications
- Model No. - M1224-MPW2
- Focal Length - 12mm
- Max. Aperture Ratio - 1:2.4
- Max. Image Format - 8.8mm x 6.6mm(φ11mm)
- Operation Range
- Iris -F2.4 ‐ F16.0
- Focus - 0.1m ‐ Inf.
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D.
- 2/3 Type - 6.4cm x 8.5cm
- 1/1.8 Type - 5.0cm x 6.7cm
- 1/2 Type - 4.6cm x 6.2cm
- Angle of View
- D - 48.6°
- H - 39.8°
- V - 30.4°
- Operating Temperature - -10℃ ‐ +50℃
- Effective Lens Aperture
- Front - φ19.5mm
- Rear - φ13.5mm
- Distortion
- 2/3 type - -0.05%(y=5.5)
- 1/1.8 type - -0.34%(y=4.32)
- 1/2 type - -0.35%(y=4.0)
- Back Focal Length - 14.39mm
- Flange Back Length - 17.526mm
- Mount - C‐Mount
- Filter Size - M27.0 P=0.5mm
- Dimensions - φ29mm x 42.68mm
- Weight - 72.0g
- 1/1.8 type
- 39.1°
- 31.7°
- 24.0°
- 1/2 type
- 36.5°
- 29.5°
- 22.3°
