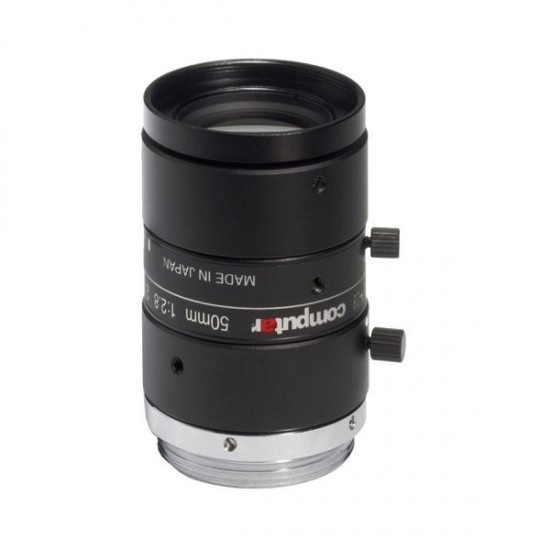

M5028-MPW2 Computar 2/3" C-Mount 50mm F/2.8 5 Mega Pixel Ultra Low Distortion Manual Iris Lens
- Brand: Computar
- Model: M5028-MPW2
- SKU: M5028-MPW2
- MPN: M5028-MPW2
$277.39
Features:
- Ultra low distortion
- Higher relative illumination rate
- Floating design
- Locking set screws for focus and iris
Specifications
- Model No. - M5028-MPW2
- Focal Length - 50mm
- Max. Aperture Ratio - 1:2.8
- Max. Image Format - 8.8mm x 6.6mm(φ11mm)
- Operation Range
- Iris - F2.8 ‐ F32.0
- Focus - 0.4m ‐ Inf.
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D.
- 2/3 Type - 4.78cm x 6.38cm
- 1/1.8 Type - 3.77cm x 5.00cm
- 1/2 Type - 3.77cm x 5.00cm
- Angle of View
- D - 12.5™
- H - 10.0™
- V - 7.5™
- Operating Temperature - -10℃ ‐ +50℃
- Effective Lens Aperture
- Front - φ18.0mm
- Rear - φ12.0mm
- Distortion
- 2/3 type - 0.027%(y=5.5)
- 1/1.8 type - 0.017%(y=4.32)
- 1/2 type - 0.015%(y=4.0)
- Back Focal Length - 27.7mm
- Flange Back Length - 17.526mm
- Mount - C-Mount
- Filter Size - M27.0 P=0.5mm
- Dimensions - φ29mm x 45.36mm
- Weight - 69.0g
- 1/1.8 type
- 9.9™
- 7.9™
- 5.9™
- 1/2 type
- 9.1™
- 7.3™
- 5.5™
