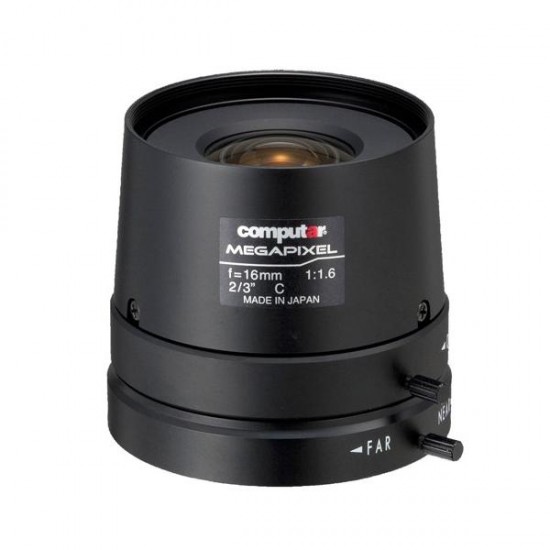

M1616FIC-MP Computar 2/3" C-Mount 16mm F/1.8 5 Megapixel Manual Iris Lens
- Brand: Computar
- Model: M1616FIC-MP
- SKU: M1616FIC-MP
- MPN: M1616FIC-MP
$258.48
Features:
- Over 5.0 Megapixel
- Full HD Format
- 16mm 2/3" C Mount
- Manual Iris
- Peak performance at long distance
- Designed for ITS & Security applications
- DC Auto-iris model available
Specifications
- Model No. - M1616FIC-MP
- Focal Length - 16mm
- Max. Aperture Ratio - 1:1.6
- Max. Image Format - 6.6mm x 8.8mm(φ11mm）
- Operation Range
- Iris - F1.6 ‐ F16C
- Focus - 1m ‐ lnf..
- Control
- Iris - DC Auto Iris
- Focus - Manual
- Angle of View
- 2/3 type
- D - 38.0°
- H - 30.8°
- V - 23.4°
- 1/2 type
- D - 28.1°
- H - 22.7°
- V - 17.1°
- 1/3 type
- D - 21.3°
- H - 17.1°
- V - 12.9°
- 2/3 type
- Effective Lens Aperture
- Front - φ21.9mm
- Rear - φ11.0mm
- Back Focal Length - 13.3mm
- Flange Back Length - 17.526mm
- Mount - C-Mount
- Filter Size - M40.5 × 0.5
- Dimensions - φ47.5mm ×45mm
- Weight - 139.3g
- Coil
- Drive - 190Ω
- Control - 1000Ω
- Operating Temperature - -10℃ ‐ +50℃
