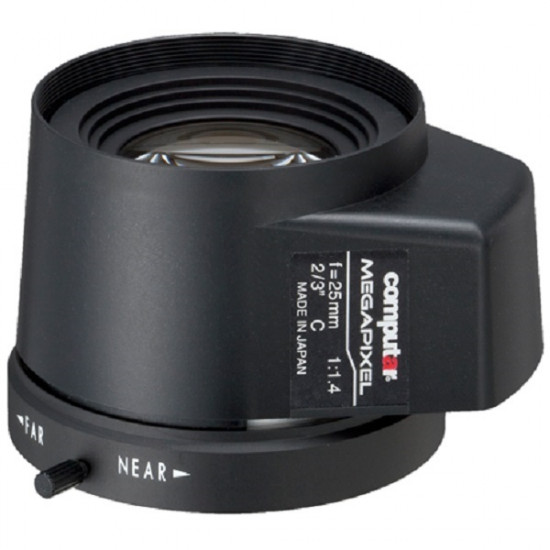

MG2514FC-MP Computar 2/3" C-Mount 25mm F/1.8 5 Megapixel DC Iris Lens
- Brand: Computar
- Model: MG2514FC-MP
- SKU: MG2514FC-MP
- MPN: MG2514FC-MP
$280.00
Features:
- Over 5.0 Megapixel
- Full HD Format
- 25mm 2/3" C Mount
- DC Auto-iris
- Peak performance at long distance
- Designed for ITS & Security applications
- Manual Iris model available
Specifications
- Model No. - MG2514FC-MP
- Focal Length - 25mm
- Max. Aperture Ratio - 1:1.4
- Max. Image Format - 6.6mm x 8.8mm(φ11mm）
- Operation Range
- Iris - F1.4 ‐ F360C
- Focus - 1m ‐ lnf..
- Control
- Iris - DC Auto Iris
- Focus - Manual
- Angle of View
- 2/3 type
- D - 24.9°
- H - 20.0°
- V - 15.1°
- 1/2 type
- D - 18.2°
- H - 14.6°
- V - 11.0°
- 1/3 type
- D - 13.7°
- H - 11.0°
- V - 8.2°
- 2/3 type
- Effective Lens Aperture
- Front - φ23.4mm
- Rear - φ14.6mm
- Back Focal Length - 13.3mm
- Flange Back Length - 17.526mm
- Mount - C-Mount
- Filter Size - M40.5 × 0.5
- Dimensions - φ41.7mm×57.8mm ×37.4mm
- Weight - 102.2g
- Coil
- Drive - 190Ω
- Control - 1000Ω
- Operating Temperature - -10℃ ‐ +50℃
