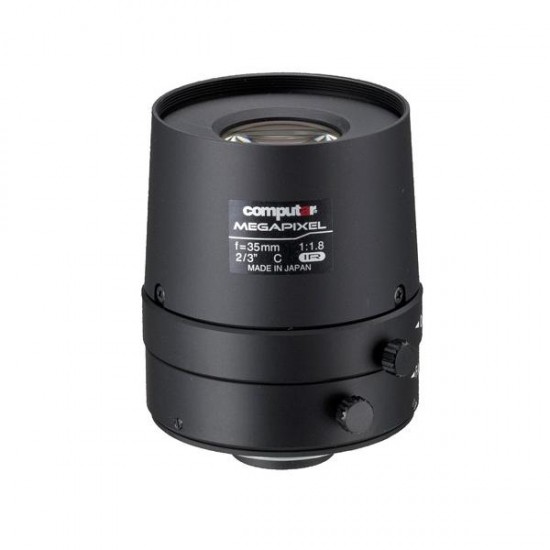

M3518FIC-MPIR Computar C-Mount 35mm F/1.8 5 Megapixel Manual Iris Lens
- Brand: Computar
- Model: M3518FIC-MPIR
- SKU: M3518FIC-MPIR
- MPN: M3518FIC-MPIR
$371.95
Features:
- Over 5.0 Megapixel
- Full HD Format
- 35mm C Mount
- Over 2/3" (Ø 12.75)
- Manual Iris
- Compatible with CMOSIS sensor
- IR Corrected Optics
- DC Auto-iris model available
Specifications
- Model No. - M3518FIC-MPIR
- Focal Length - 35mm
- Max. Aperture Ratio - 1:1.8
- Max. Image Format - 11.3mm x 6.0mm(φ12.8mm）
- Operation Range
- Iris - F1.8 ‐ F16C
- Focus - 1m ‐ lnf..
- Control
- Iris - DC Auto Iris
- Focus - Manual
- Angle of View
- 2/3 type
- D - 17.4°
- H - 13.9°
- V - 10.5°
- 1/2 type
- D - 12.7°
- H - 10.2°
- V - 7.6°
- 1/3 type
- D - 9.5°
- H - 7.6°
- V - 5.7°
- 2/3 type
- Effective Lens Aperture
- Front - φ19.8mm
- Rear - φ12.1mm
- Back Focal Length - 14.3mm
- Flange Back Length - 17.526mm
- Mount - C-Mount
- Filter Size - M40.5 × 0.5
- Dimensions - φ46.5mm × 53.2mm
- Weight - 149.2g
- CMV2000 11.264 × 5.984 (φ12.75)
- D - 20.0°
- H - 17.8°
- V - 9.5°
- Operating Temperature - -10℃ ‐ +50℃
