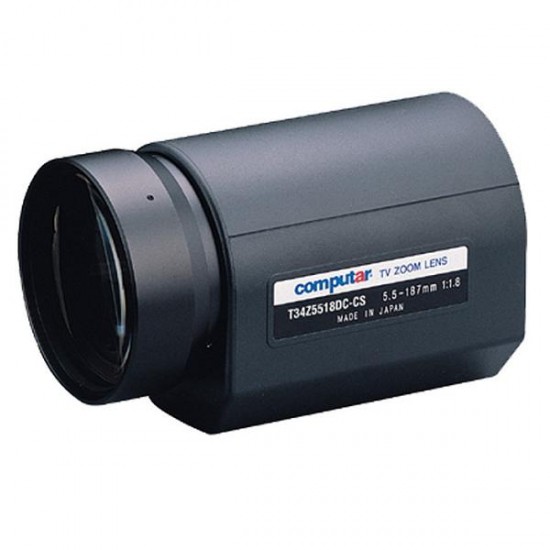

T34Z5518DC Computar 1/3" CS-Mount 5.5-187mm Motorized Zoom F/1.8 Mini Connector Video DC Auto Iris Lens
- Brand: Computar
- Model: T34Z5518DC
- SKU: T34Z5518DC
- MPN: T34Z5518DC
$1,057.87
Computar Motorized Zoom Lenses provide remote control of focal length, iris and focus through the use a lens controller, for use where variable focal length and remote control are required. They are ideal for applications requiring long distance surveillance in parking lots, highways, etc.
Specifications
- Model No. - T34Z5518DC-CS
- Focal Length - 5.5mm - 187mm
- Max. Aperture Ratio - 01:01.8
- Max. Image Format - 4.8mm x 3.6mm(φ6mm)
- Operation Range
- Iris - F1.8 - F560C
- Focus - 1.5m - Inf.
- Zoom - 5.5mm - 187mm
- Control
- Iris - DC Auto Iris
- Focus - Motorized
- Zoom - Motorized
- Object Dimension at M.O.D
- 5.5mm - 129.2cm x 95.2cm
- 187mm - 4.1cm x 3.1cm
- Angle of View
- 1/3 type
- D - 57.5º - 1.92º
- H - 46.6º - 1.55º
- V - 35.2º - 1.17º
- 1/4 type
- D - 43.8º - 1.45º
- H - 35.2º - 1.17º
- V - 26.5º - 0.88º
- 1/3 type
- Supply Voltage
- Focus - DC8V
- Zoom - DC8V
- Current
- Focus - 40mA or less
- Zoom - 25mA or less
- Response Time
- Focus - Approx. 3.5 sec.
- Zoom - Approx. 3.5 sec.
- Coil
- Drive - 190Ω
- Control - 1000Ω
- Operating Temperature - +10ºC - 50ºC
- Effective Lens Aperture
- Front - φ70.0mm
- Rear - φ9.1mm
- Back Focal Length - 12.7mm
- Flange Back Length - 12.5mm
- Mount - CS-Mount
- Filter Size - M77 P=0.75mm
- Tripod Screw - 1/4 - 20UNC
- Dimensions - W82mm x H97.4mm x D160mm
- Weight - 1110g
