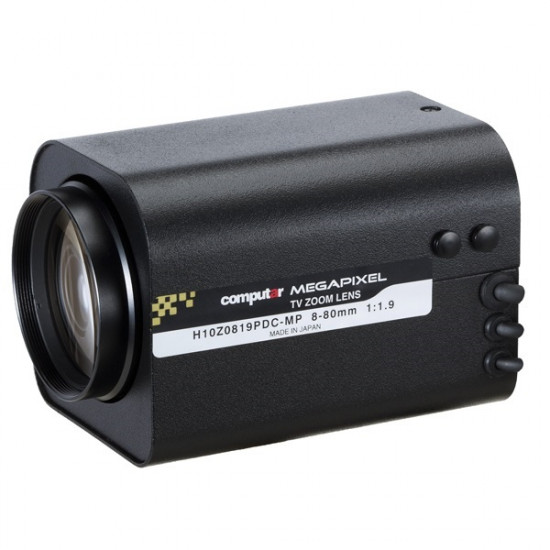

H10Z0819PDC-MP Computar 1/2" C-Mount 8-80mm F/1.8 1.3 Megapixel Preset Auto Iris Zoom Lens
- Brand: Computar
- Model: H10Z0819PDC-MP
- SKU: H10Z0819PDC-MP
- MPN: H10Z0819PDC-MP
$520.00
Features:
- 10X Megapixel Zoom Lens
- 8-80mm
- F1.9
- DC Auto Iris
- Motorized Zoom and Focus
- Preser Zoom and Focus
- 1/2" Format, C-Mount
Specifications
- Model No. - H10Z0819PDC-MP
- Focal Length - 8mm φ 80mm
- Max. Aperture Ratio - 01:01.9
- Max. Image Format - 6.4mm x 4.8mm(φ8mm)
- Operation Range
- Iris - F1.9 - F1000 (W/ND Filter)
- Focus - 2.5m - inf.
- Zoom - 8mm - 80mm
- Control
- Iris - DC Auto Iris
- Focus - Motorized
- Zoom - Motorized
- Object Dimension at M.O.D.
- 8mm - 1448 x 1951 mm
- 80mm - 137 x 187 mm
- Angle of View
- 1/2 type
- D - 54.10°- 5.05°
- H - 44.81°- 4.45°
- V - 34.62°- 3.38°
- 1/3 type
- D - 42.26°- 4.17°
- H - 34.62°- 3.38°
- V - 26.39°- 2.55°
- 1/4 type
- D - 32.57°- 3.17°
- H - 26.39°- 2.55°
- V - 20.00°- 1.92°
- 1/2 type
- Supply Voltage
- Focus - DC6-12V
- Zoom - DC6-12V
- Current
- Focus - 60mA or less
- Zoom - 60mA or less
- Response Time
- Focus - Approx. 6.5 sec. (when 8V input)
- Zoom - Approx. 7 sec. (when 8V input)
- Preset Potentiometer
- Focus - 10kΩVR
- Zoom - 10kΩVR
- Coil
- Drive - 190Ω
- Control - 1150Ω
- Effective Lens Aperture
- Front - φ40.0mm
- Rear - φ13.2mm
- Back Focal Length - 16.53mm
- Flange Back Length - 17.526mm
- Mount - C-Mount
- Filter Size - M46 P=0.75mm
- Tripod Screw - 1/4 -20UNC
- Dimensions - W65mm x H67mm x D104.5mm
- Weight - 590g
- Operating Temperature - -10º - +50º
