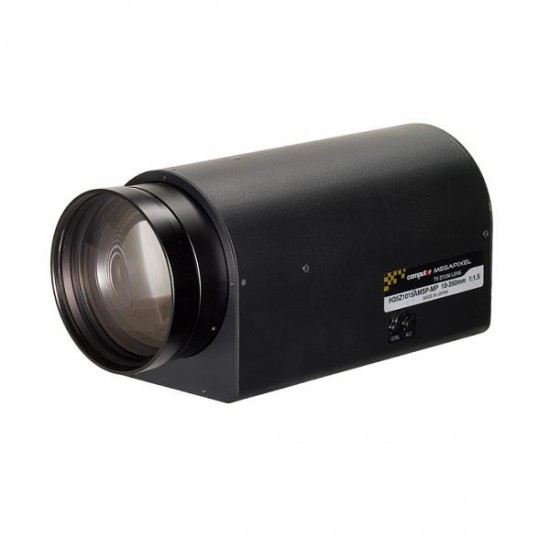

H35Z1015AMSP-MP Computar 1/2" C-Mount 10-350mm F/1.5 2.0 Mega-Pixel Auto Iris Zoom Lens

Features:

• 35X Megapixel Zoom Lens
• 10-350mm
• F1.5
• Video Auto Iris
• Motorized Zoom and Focus
• Preset Zoom and Focus
• 1/2" Format, C-Mount

Specifications

• Model No. - H35Z1015AMSP-MP
• Focal Length - 10mm φ 350mm
• Max. Aperture Ratio - 1:1.5 - 4.4
• Max. Image Format - 6.4mm x 4.8mm(φ8mm)
• Operation Range
  • Iris - F1.5 - F1000 (W/ND Filter)
  • Focus - 2.5m - lnf.
  • Zoom - 10mm - 350mm
• Control
  • Iris - Video Auto Iris
  • Focus - Motorized
  • Zoom - Motorized
• Object Dimension at M.O.D.
  • 8mm - 112.1cm x 149.6cm
  • 80mm - 3.26cm x 4.34cm
• Angle of View
  • 1/2 type
    • D - 43.60°- 1.30°
    • H - 35.30°- 1.05°
    • V - 26.70°- 0.79°
  • 1/3 type
    • D - 32.90°- 0.98°
    • H - 26.70°- 0.79°
    • V - 20.10°- 0.59°
  • 1/4 type
    • D - 24.7°- 0.73°
    • H - 20.1°- 0.44°
    • V - 15.1°- 0.44°
• Supply Voltage
  • Iris - DC6-12V
  • Focus - DC6-12V
  • Zoom - DC6-12V
• Current
  • Iris - 40mA or less
  • Focus - 40mA or less
  • Zoom - 40mA or less
• Response Time
  • Iris - 4-8 sec.
  • Focus - Approx. 9 sec. (when 10V input)
  • Zoom - Approx. 9 sec. (when 10V input)
• Preset Potentiometer
  • Focus - 10kΩVR
  • Zoom - 10kΩVR
• Effective Lens Aperture
  • Front - φ80.1mm
  • Rear - φ17.3mm
• Back Focal Length - 14.48mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M86 P=1.0mm
• Tripod Screw - 1/4 -20UNC
• Dimensions - W97mm x H109mm x D238.5mm
• Weight - 1880g
• Light Weighting method - Adjustable between Average - Peak
• Iris Accuracy - Video Signal ( V or VS)
• Input Impedance - ±15% at Video Signal Level
• Sensitivity Adjustment - 0.4V(p-p) - 1.0V (p-p) (Video Signal)
• Input Signal - High Impedance
• Operating Temperature - -10º - +50º
