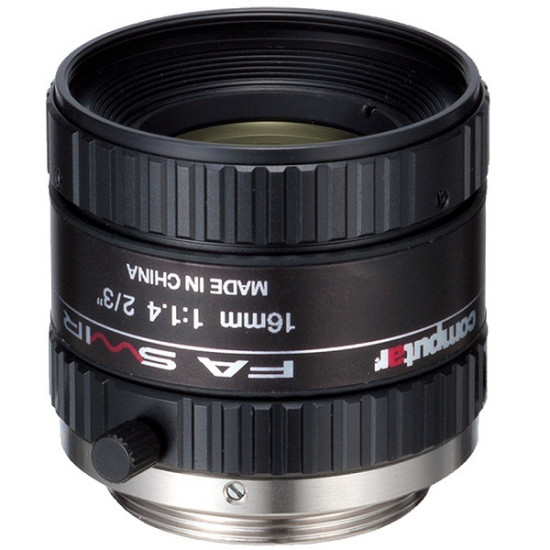

M1614-SW Computar 2/3" C-Mount 16mm F/1.4 Manual Iris Lens

Features:

• Unique coating technology delivers high transmission from 800nm-1,700nm
• High-resolution, low-distortion design offers Megapixel clarity in hyperspectral application
• Also available in 25mm, 35mm and 50mm
• Designed around the popular φ12.3mm image circle format
• The industry's most compact form factor. Fits in most applications

SWIR (Short Wave Infrared) Lenses are specifically designed for Machine Vision applications in NIR and SWIR.

Specifications

• Model No. - M1614-SW
• Focal Length - 16mm
• Max. Aperture Ratio - 1:1.4
• Max. Image Circle - φ12.3mm
• Operation Range
  • Iris - F1.4- F16C
  • Focus - 0.3m - Inf.
• Control
  • Iris - Manual
  • Focus - Manual
• Object Dimension at M.O.D
  • 2/3 type - 17.0cm x 12.7cm
  • 1/2 type - 12.3cm x 9.2cm
• Angle of View
  • 2/3 type H8.80mm x V6.60mm
    • D - 37.7°
    • H - 30.6°
    • V - 23.2°
  • 1/2 type H6.40mm x V4.80mm
    • D - 27.9°
    • H - 22.5°
    • V - 16.9°
• Angle of View ( InGaAs Detector)
  • 640 x 512 (Pixel Pitch : 15μm) H9.60mm x V7.68mm
    • D - 41.7°
    • H - 33.2°
    • V - 26.8°
  • 320 x 256 (Pixel Pitch : 25μm) 8.00mm x V6.40mm
    • D - 35.3°
    • H - 27.9°
    • V - 22.5°
  • 320 x 256 (Pixel Pitch : 20μm) H6.40mm x V5.12mm
    • D - 28.6°
    • H - 22.5°
    • V - 18.0°
• Operating Temperature - -10º - +50º
• Effective Lens Aperture
  • Front - φ18.5mm
  • Rear - φ13.2mm
• Distortion
  • 2/3type - -0.5% (y=5.5)
  • 1/2type - -0.5% (y=4.0)
• Back Focal Length - 13.3mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M30.5 P=0.5mm
• Dimensions - φ33.5mm x 28.2mm
• Weight - 60g

M1614-SW Specifications PDF
