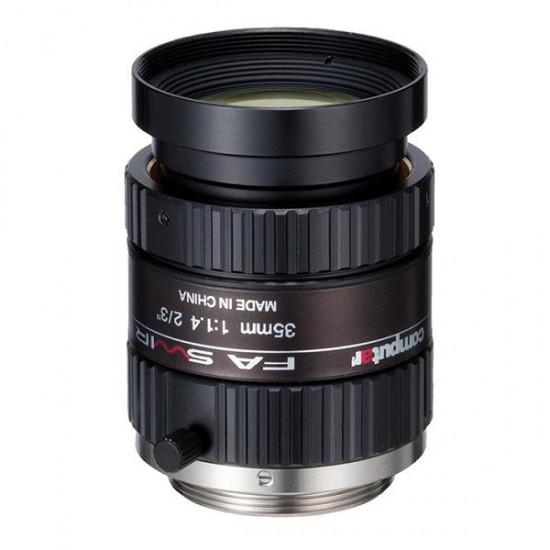

M3514-SW Computar 2/3" C-Mount 35mm F/1.4 Manual Iris Lens

Features:

• Unique coating technology delivers high transmission from 800nm-1,700nm
• High-resolution, low-distortion design offers Megapixel clarity in hyperspectral application
• Also available in 16mm, 25mm and 50mm
• Designed around the popular φ12.3mm image circle format
• The industry's most compact form factor. Fits in most applications

SWIR (Short Wave Infrared) Lenses are specifically designed for Machine Vision applications in NIR and SWIR.

Specifications

• Model No. - M3514-SW
• Focal Length - 35mm
• Max. Aperture Ratio - 1:1.4
• Max. Image Circle - φ12.3mm
• Operation Range
  • Iris - F1.4- F16C
  • Focus - 0.3m - Inf.
• Control
  • Iris - Manual
  • Focus - Manual
• Object Dimension at M.O.D
  • 2/3 type - 8.0cm x 6.0cm
  • 1/2 type - 5.8cm x 4.4cm
• Angle of View
  • 2/3 type H8.80mm x V6.60mm
    • D - 18.4™
    • H - 14.7™
    • V - 11.1™
  • 1/2 type H6.40mm x V4.80mm
    • D - 13.4™
    • H - 10.7™
    • V - 8.1™
• Angle of View ( InGaAs Detector)
  • 640 x 512 (Pixel Pitch : 15μm) H9.60mm x V7.68mm
    • D - 20.5™
    • H - 16.0™
    • V - 12.9™
  • 320 x 256 (Pixel Pitch : 25μm) 8.00mm x V6.40mm
    • D - 17.1™
    • H - 13.4™
    • V - 10.7™
  • 320 x 256 (Pixel Pitch : 20μm) H6.40mm x V5.12mm
    • D - 13.7™
    • H - 10.7™
    • V - 8.6™
• Operating Temperature - -10™ - +50™
• Effective Lens Aperture
  • Front - φ24mm
  • Rear - φ12mm
• Distortion
  • 2/3type - -0.1% (y=5.5)
  • 1/2type - -0% (y=4.0)
• Back Focal Length - 14.6mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M30.5 P=0.5mm
• Dimensions - φ33.5mm x 38.2mm
• Weight - 87g

M3514-SW Specifications PDF
