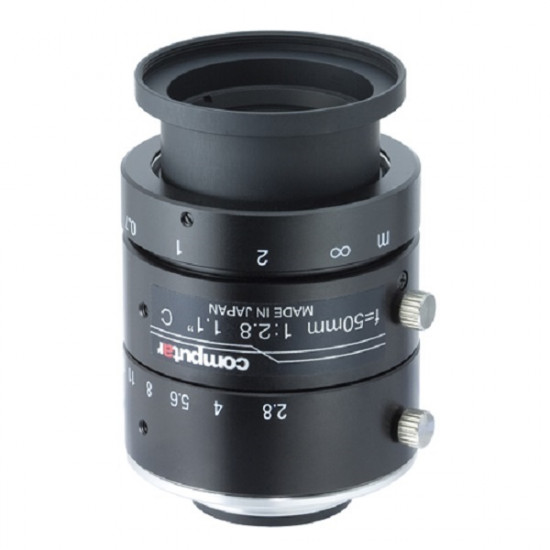

V5028-MPY Computar 1.1" C-Mount 50mm F/2.8 12 Mega-Pixel Ultra Low Distortion Manual Iris Lens
- Brand: Computar
- Model: V5028-MPY
- SKU: V5028-MPY
- MPN: V5028-MPY
$553.00
Features:
- For Machine Vision and ITS Applications
- 50mm Fixed Lens
- 12 Megapixel
- C Mount
- Smallest 1.1” format lens for > 10MP Lens in the industry
- F 2.8
- 3.45µm pixel size
- Image circle Ø17
- Also Available in 8, 12, 16, 25 and 35mm focal lengths
Specifications
- Model No. - V5028-MPY
- Focal Length - 50mm
- Max. Aperture Ratio - 1:2.8
- Max. Image Format - 14.2mm x 10.4mm(φ17.6mm)
- Operation Range
- Iris - F2.8 ‐ F16.0
- Focus - 0.5m ‐ Inf
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D.
- 1.1" Type - 12cm x 8.5cm
- Angle of View
- D - 1.1 Type 20.0°
- H - 1.1 Type 16.2°
- V - 1.1 Type 11.9°
- Operating Temperature - -10℃ ‐ +50℃
- Effective Lens Aperture
- Front - φ22.2mm
- Rear - φ15.4mm
- Distortion
- 1.1 type - -0.1%
- Back Focal Length - 11.9mm
- Flange Back Length - 17.526mm
- Mount - C‐Mount
- Filter Size - M34.0 P=0.5mm
- Dimensions - φ39.5mm x 45.2mm
- Weight - 107g
