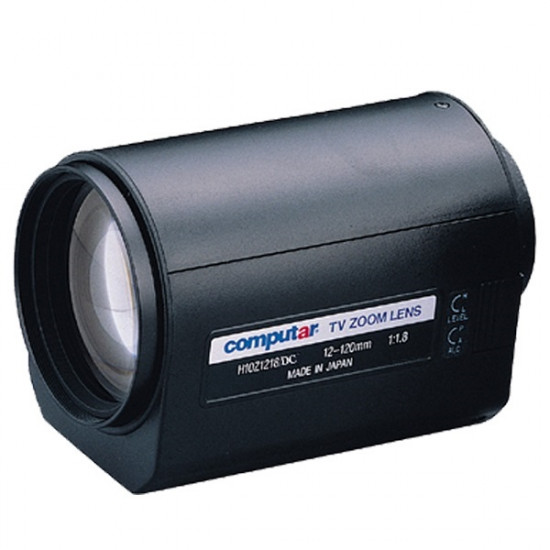

H10Z1218DC Computar 1/2" CS-Mount Motorized Zoom 12-120mm F/1.8 DC Auto Iris Lens
- Brand: Computar
- Model: H10Z1218DC
- SKU: H10Z1218DC
- MPN: H10Z1218DC
$581.00
Features:
- 1/2" 12-120mm f1.8 10X Motorized Zoom
- DC Auto Iris w/ 4-pin mini connector (C Mount)
Specifications
- Focal Length - 12- 120mm
- Max. Aperture Ratio - 01:01.8
- Max. Image Format - 6.4 x 4.8mm ( 8mm)
- Operation Range
- Iris - F1.8 - 560
- Focus - 1.5m - Inf.
- Zoom - 12- 120mm
- Control
- Iris - DC Auto Iris(by galvanometer)
- Focus - Motorized
- Zoom - Motorized
- Object Dimension at M.O.D.
- 12mm - 78.7 x 58.9cm
- 120mm - 8.1 x 6.0cm
- Angle of View
- 1/2"
- D - 36.4-3.8°
- H - 29.4-3.1°
- V - 22.2-2.3°
- 1/3"
- D - 27.6-2.9°
- H - 22.2-2.3°
- V - 16.7-1.8°
- 1/2"
- Control
- Supply Voltage
- Focus - DC8V
- Zoom - DC8V
- Current
- Focus - 40mA or less
- Zoom - 40mA or less
- Response Time
- Focus - Approx. 5 sec.
- Zoom - Approx. 4.5 sec.
- Supply Voltage
- Iris(DC Auto Iris)
- Drive Coil - 190
- Control Coil - 1000
- Operating Temperature - - 10°C+50°C
- Effective Lens Aperture
- Front - 54.0mm
- Rear - 9.2mm
- Back Focal Length - 14.4 mm
- Flange Back Length - 17.526 mm
- Mount - C-Mount
- Filter Size - M62 P=0.75 mm
- Tripod Screw - 1/4"-20UNC
- Dimensions - W70xH79.5xD123.5mm
- Weight - 630g
