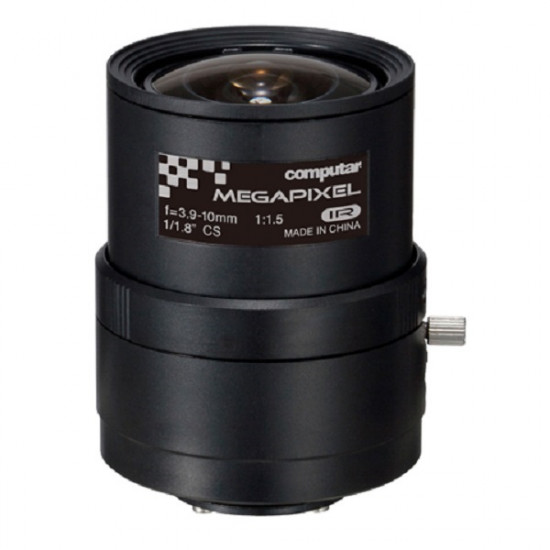

E3Z3915CS-MPWIR Computar 8MP/4K 1/1.8" 3.9-10mm Varifocal F1.5-F16C CS Mount Manual Iris IR Corrected Lens
- Brand: Computar
- Model: E3Z3915CS-MPWIR
- SKU: E3Z3915CS-MPWIR
- MPN: E3Z3915CS-MPWIR
$160.00
Features:
- 3.9mm‐10mm Varifocal
- F1.5
- Day & Night for 1/1.8 type Megapixel Cameras
- Manual Iris
- CS‐Mount
Specifications
- Model No. - E3Z3915CS-MPWIR
- Focal Length - 3.9mm ‐ 10mm
- Max. Aperture Ratio - 1:1.5
- Max. Image Format - 7.1mm x 5.4mm(φ8.9mm)
- Effective Lens Aperture
- Front - φ25.0mm
- Rear - φ10.0mm
- Operation Range
- Iris - F1.5 ‐ F16C
- Focus - 0.8m ‐ lnf.
- Zoom - 3.9mm ‐ 10mm
- Back Focal Length
- Tele - 8.5mm
- Wide - 8.5mm
- Control
- Iris - Manual
- Focus - Manual
- Zoom - Manual
- Flange Back Length - 12.5mm
- Mount - CS-Mount
- Dimensions - φ40 mm× 49 mm× 59 mm
- Weight - 69g
- Angle of View
- 1/1.8 type
- D - 144.1°‐ 52.9°
- H - 108.1°‐ 42.1°
- V - 79.7°‐ 32.0°
- 1/2 type
- D - 124.8°‐ 47.5°
- H - 96.0°‐ 37.9°
- V - 70.2°‐ 28.4°
- 1/3 type
- D - 89.3°- 35.5°
- H - 70.2°- 28.4°
- V - 52.1°- 21.3°
- Operating Temperature - -20°C ‐ +60°C
