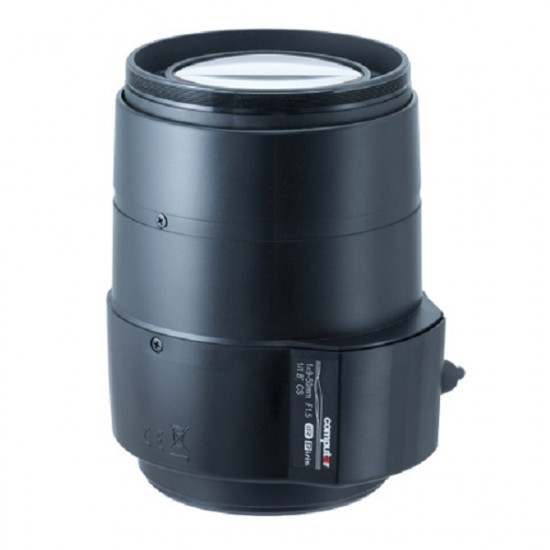

EG6Z0915FCS-MPWIR Computer CS-Mount 1/1.8" 9-50mm Varifocals F1.5 DC Iris 4K
- Brand: Computar
- Model: EG6Z0915FCS-MPWIR
- SKU: EG6Z0915FCS-MPWIR
- MPN: EG6Z0915FCS-MPWIR
$253.00
Features:
- 1/1.8” Format
- 4K
- 9.0-50mm
- F1.5 Flat
- HOV 46°-9°
- Full HD Format
- DC-Iris
- Precise Focus Adjustment
- IR Corrected Optics
- Corner Brightness
Specifications
Optical Specifications
- Model No - EG6Z0915FCS-MPWIR
- Focal Length - 9mm ‐ 50mm
- F‐Number
- Wide - F1.5 ‐ F16C
- Tele - F1.6 ‐ F16C
- Max. Image Format - 7.1mm x 5.4mm (φ8.9mm)
- Angle of View
- 1/1.8 type (16:9)
- Diagonal - 52.5° - 10.2°
- Horizontal - 46.1° - 9.0°
- Vertical - 26.3° - 5.2°
- 1/1.8 type (4:3)
- 52.5°-10.2°
- 42.3° - 8.2°
- 32.4° - 6.3°
- Min. Objective Distance - 3m from front of lens
- Effective Lens Aperture - Front:φ44.7mm Rear:φ9.6mm
- Back Focal Length
- Wide - 9.2 mm (in Air)
- Tele - 9.2 mm (in Air)
- Flange Back Length - 12.5mm (In Air)
Mechanical & Electrical Specifications
- Control
- Iris - Stepping Motor
- Focus - Manual
- Zoom - Manual
- Tripod Screw - 1/4 ‐20UNC
- Dimensions - As per the attached drawing
- Mount - CS mount
- Weight - 278g
