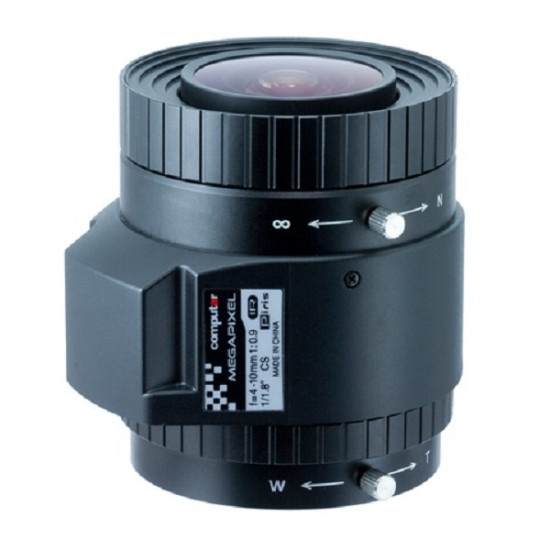

EG3Z0409KCS-MPWIR Computer CS-Mount 1/1.8" 4-10mm Varifocals F0.9 P-Iris 4K
- Brand: Computar
- Model: EG3Z0409KCS-MPWIR
- SKU: EG3Z0409KCS-MPWIR
- MPN: EG3Z0409KCS-MPWIR
$480.00
Features:
- 1/1.8” Format
- 4K
- 4.0-10mm
- F1.6
- HOV 120.1°-46.3°
- P-Iris
- Precise Focus Adjustment
- IR Corrected Optics
Specifications
Optical Specifications
- Model No - EG3Z0409KCS-MPWIR
- Focal Length - 4mm ‐ 10mm
- F‐Number
- Wide - F0.9 ‐ F16C
- Tele - F1.6 ‐ F16C
- Max. Image Circle - φ8.9mm
- Angle of View
- 1/1.8 type (16:9)
- Diagonal - 147.8° - 53.3°
- Horizontal - 120.1° - 46.3°
- Vertical - 62.1° - 25.9°
- 1/1.8 type (4:3)
- 147.8°-53.3°
- 107.6° - 42.4°
- 77.2° -31.7°
- Min. Objective Distance - 100cm from front of lens
- Effective Lens Aperture - Front : φ33.9mm Rear: φ10.7mm
- Back Focal Length
- Wide - 8.01 mm (in Air)
- Tele - 8.01 mm (in Air)
- Flange Back Length - 12.5mm
Mechanical & Electrical Specifications
- Control
- Iris - Stepping Motor
- Focus - Manual
- Zoom - Manual
- Tripod Screw - 1/4 ‐20UNC
- Dimensions - As per the attached drawing
- Mount - CS mount
- Weight - TBD
- Operating Temperature - -20℃ - +60℃ (TBD)
