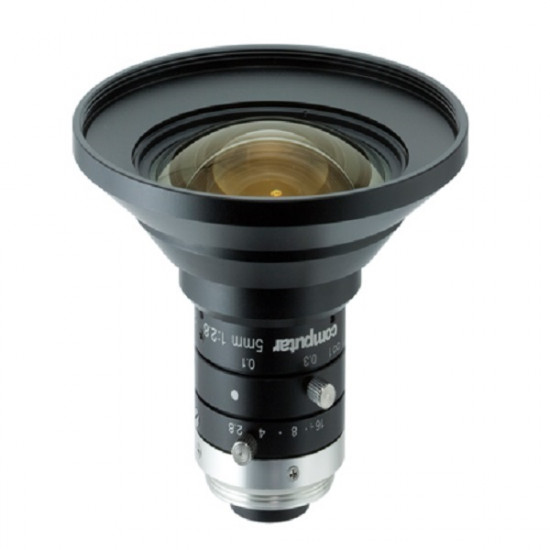

M0528-MPW3 Computar 2/3" C-Mount 5mm F2.8 8MP Fixed Iris Lens
- Brand: Computar
- Model: M0528-MPW3
- SKU: M0528-MPW3
- MPN: M0528-MPW3
$440.00
Features:
- 2/3” Format
- 4K / 8 Megapixel
- 5mm Fixed
- F2.8
- Full HD Format
- Fixed Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
Specifications
- Model No. - M0528-MPW3
- Focal Length - 5mm
- Max. Aperture Ratio - 1:2.8
- Max. Image Format - 8.8mm x 6.6mm(φ11mm）
- Operation Range
- Iris - F2.8 ‐ 16.0
- Focus - 0.1m - inf.
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D.
- 2/3 Type - 216.0 x 160.4 mm
- 1/1.8 Type - 175.6 x 130.0 mm
- 1/2.5 Type - 137.6 x 102.6 mm
- Angle of View
- 2/3 type
- D - 94.6°
- H - 83.2°
- V - 67.5°
- 1/1.8 type
- D - 83.8°
- H - 71.6°
- V - 58.3°
- 1/2.5 type
- D - 71.4°
- H - 59.8°
- V - 46.6°
- Operating Temperature - -10℃ ‐ +50℃
- Effective Lens Aperture
- Front - φ45.5mm
- Rear - φ 9.9mm
- Distortion
- 2/3 type(Y=5.5mm) - 0.03%
- 1/1.8 type(Y=4.5mm) - -2.14%
- 1/2.5 type(Y=3.55mm) - -2.72%
- Back Focal Length - 9.2mm
- Flange Back Length - 17.526mm
- Mount - C‐Mount
- Filter Size - M72 P=0.75mm
- Dimensions - φ75mm x 54mm
- Weight - 163g
