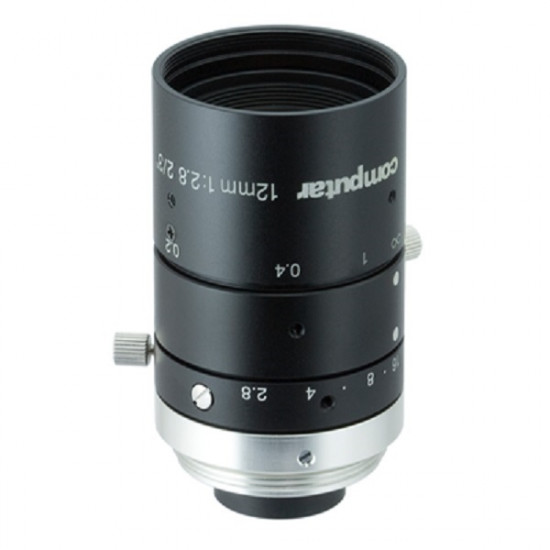

M1228-MPW3 Computar 2/3" C-Mount 12mm F2.8 8MP Manual Iris Lens
- Brand: Computar
- Model: M1228-MPW3
- SKU: M1228-MPW3
- MPN: M1228-MPW3
$253.00
Features:
- 2/3” Format
- 4K / 8 Megapixel
- 12mm Fixed
- F2.8
- Full HD Format
- Manual Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
Specifications
- Model No. - M1228-MPW3
- Focal Length - 12mm
- Max. Aperture Ratio - 1:2.8
- Max. Image Format - 8.8mm x 6.6mm(φ11mm）
- Operation Range
- Iris - F2.8 ‐ 16.0
- Focus - 0.1m - inf.
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D.
- 2/3 Type - 83.0 x 62.0 mm
- 1/1.8 Type - 67.7 x 50.6 mm
- 1/2.5 Type - 53.4 x 40.2 mm
- Angle of View
- 2/3 type
- D - 49.3°
- H - 40.3°
- V - 30.8°
- 1/1.8 type
- D - 40.8°
- H - 33.1°
- V - 26.0°
- 1/2.5 type
- D - 33.0°
- H - 26.7°
- V - 20.3°
- Operating Temperature - -10℃ ‐ +50℃
- Effective Lens Aperture
- Front - φ18.8mm
- Rear - φ10.3mm
- Distortion
- 2/3 type(Y=5.5mm) - -0.10%
- 1/1.8 type(Y=4.5mm) - 0.04%
- 1/2.5 type(Y=3.55mm) - 0.00% *
- Back Focal Length - 9.2mm
- Flange Back Length - 17.526mm
- Mount - C‐Mount
- Filter Size - M27 P=0.5mm
- Dimensions - φ29mm x 43.5mm
- Weight - 60g
