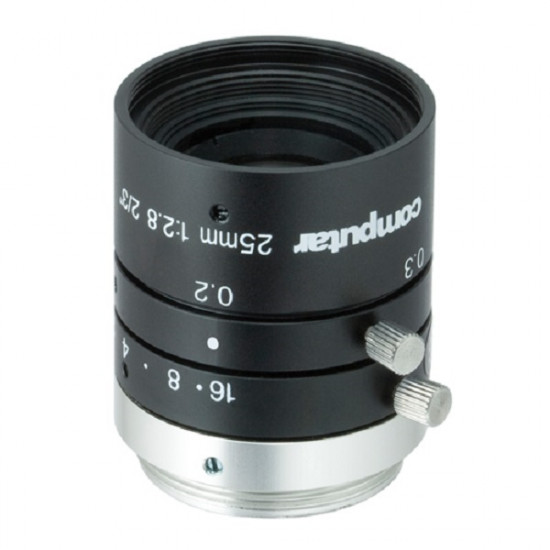

M2528-MPW3 Computar 2/3" C-Mount 25mm F2.8 8MP Fixed Iris Lens
- Brand: Computar
- Model: M2528-MPW3
- SKU: M2528-MPW3
- MPN: M2528-MPW3
$240.00
Features:
- 2/3” Format
- 4K / 8 Megapixel
- 25mm Fixed
- F2.8
- Full HD Format
- Fixed Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
Specifications
- Model No. - M2528-MPW3
- Focal Length - 25mm
- Max. Aperture Ratio - 1:2.8
- Max. Image Format - 8.8mm x 6.6mm(φ11mm）
- Operation Range
- Iris - F2.8 ‐ 16.0
- Focus - 0.2m - inf.
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D.
- 2/3 Type - 70.7 x 53.0 mm
- 1/1.8 Type - 57.8 x 43.3 mm
- 1/2.5 Type - 45.7 x 34.5 mm
- Angle of View
- 2/3 type
- D - 24.6°
- H - 19.9°
- V - 15.0°
- 1/1.8 type
- D - 20.3°
- H - 16.3°
- V - 12.3°
- 1/2.5 type
- D - 16.1°
- H - 13.0°
- V - 9.8°
- Operating Temperature - -10℃ ‐ +50℃
- Effective Lens Aperture
- Front - φ14.1mm
- Rear - φ10.5mm
- Distortion
- 2/3 type(Y=5.5mm) - 0.77%
- 1/1.8 type(Y=4.5mm) - 0.77%
- 1/2.5 type(Y=3.55mm) - 0.29%
- Back Focal Length - 11.5mm
- Flange Back Length - 17.526mm
- Mount - C‐Mount
- Filter Size - M27 P=0.5mm
- Dimensions - φ29mm x 31.5mm
- Weight - 42g
