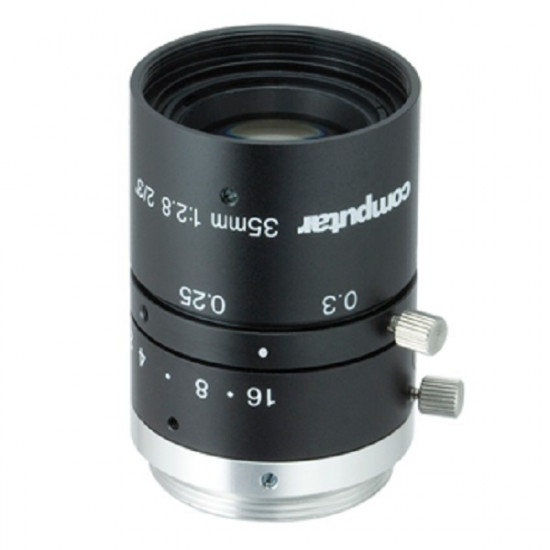

M3528-MPW3 Computar 2/3" C-Mount 35mm F2.8 8MP Fixed Iris Lens
- Brand: Computar
- Model: M3528-MPW3
- SKU: M3528-MPW3
- MPN: M3528-MPW3
$240.00
Features:
- 2/3” Format
- 4K / 8 Megapixel
- 35mm Fixed
- F2.8
- Full HD Format
- Fixed Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
Specifications
- Model No. - M3528-MPW3
- Focal Length - 35mm
- Max. Aperture Ratio - 1:2.8
- Max. Image Format - 8.8mm x 6.6mm(φ11mm）
- Operation Range
- Iris - F2.8 ‐ 16.0
- Focus - 0.25m - inf.
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D.
- 2/3 Type - 45.1 x 33.8mm
- 1/1.8 Type - 36.6 x 27.4mm
- 1/2.5 Type - 29.3 x 21.9mm
- Angle of View
- 2/3 type
- D - 17.9°
- H - 14.3°
- V - 10.8°
- 1/1.8 type
- D - 14.4°
- H - 11.7°
- V - 8.7°
- 1/2.5 type φ7.1
- D - 11.6°
- H - 9.3°
- V - 7.0°
- Operating Temperature - -10℃ ‐ +50℃
- Effective Lens Aperture
- Front - φ17.8mm
- Rear - φ11.8mm
- Distortion （∞）
- 2/3 type(Y=5.5mm) - 0.06%
- 1/1.8 type(Y=4.5mm) - 0.04%
- 1/2.5 type(Y=3.55mm) - 0.03%
- Back Focal Length - 18.0mm
- Flange Back Length - 17.526mm
- Mount - C‐Mount
- Filter Size - M27 P=0.5mm
- Dimensions - φ29mm x 38.5mm
- Weight - 48g
